USED 2015 HYD-MECH VW-18

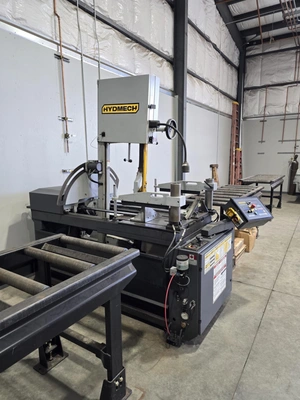

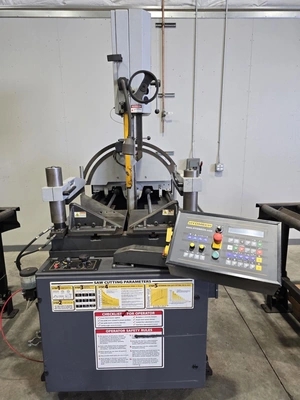

Lightly used HYD-MECH Model VW-18 Vertical Band Saw with 18 x 22" capacity, equipped with left and right heavy-duty conveyors for material handling.

Brand: Hyd-Mech
Model: VW-18
Type: Vertical Mitering Bandsaw
Year: 09/2015

Rectangular at 90°: 22" H × 18" W
Blade Size: 1-1/4"" × 16'3"
Blade Drive: 5 HP VFD (Variable Frequency Drive)
Blade Speed: 65 to 385 SFM (Surface Feet per Minute)
Power Miter
Miters to 60 deg (15 past 45)

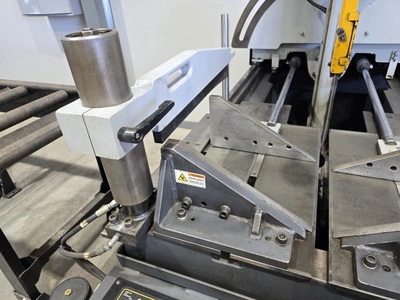

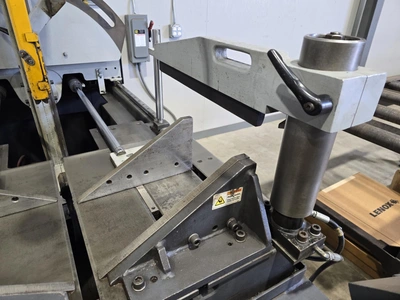

Power Dual Vises
Power Dual Bundler Vises
Mist cooling and flood

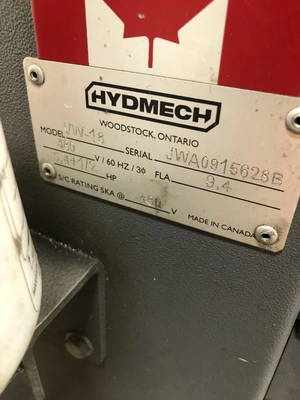

480V/3P Machine
Comes with a step-up transformer: 240V/3P to 480V/3P (I have wired it both ways)

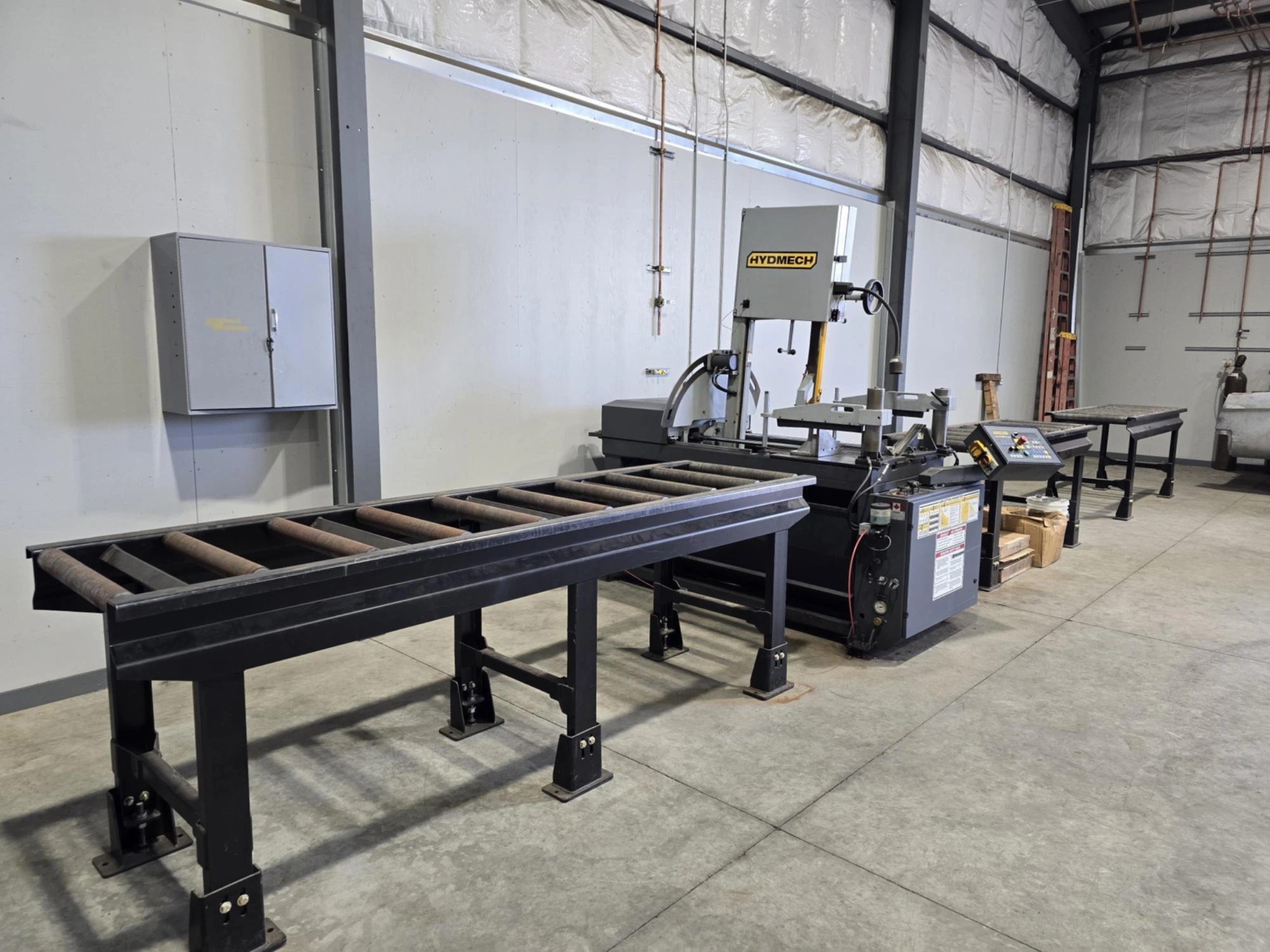

Custom built Conveyors
1/4" plate formed body with C6x8.2 channel legs
Adjustable feet to match the saw deck height
(2) In-feed conveyors, each 87" in length
(1) Out-feed conveyor, 111" in length
2-1/2" x 24-7/16" Rollers spaced on 12" centers
Roller weight rating: 640# each

Machine Weight 2,700 lbs
Machine Dimensions 36″ W x 95″ L x 96″ H

TERMS:

FOB Ripon, CA- “AS-IS, WHERE-IS” with all faults, off seller’s floor. Under power and available for in-person inspection. Full Payment due prior to shipment. Price includes machine prep and loading on buyers truck. Immediate availability, subject to prior sale. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
