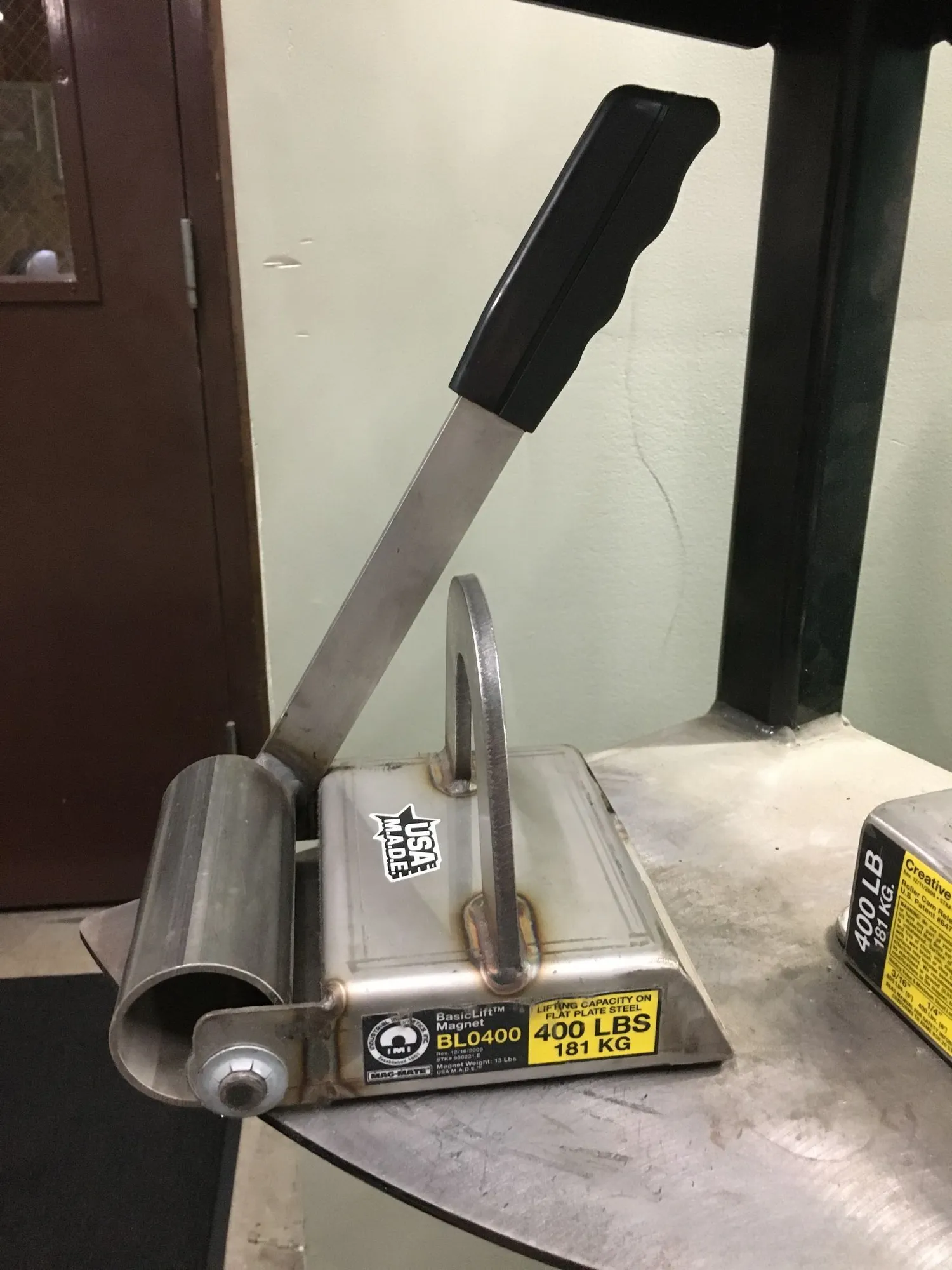

USED MAG-MATE BL0400

The BasicLift™ Magnet is a powerful, no frills permanent ceramic lift magnet perfect for basic, flat steel lifting, angle iron, square tube and other lifting applications. Featuring a lightweight and durable Stainless Steel design, the BasicLift has a full width cam to release the magnet from the steel surface and a tall lift lug for easy use with crane hooks and slings.

Magnet Activation: Full Width Roller Cam
Magnet Material: Ceramic
Maximum Rated Flat Capacity: 400 Lbs.
Minimum Material Thickness for Activation: 3/16"
Maximum Rated Capacity @ Minimum Activation Thickness: 375 Lbs.
Required Material Thickness for Maximum Rated Capacity: 3"
Overall Height: 5-1/2"
Overall Length: 7-1/2"
Overall Width: 6-1/2"
Magnet Height: 1-5/8"
Magnet Width: 4-1/2"
Magnet Length: 3-3/8"
Handle Length: 12"
Bail Opening Height: 2-3/4"
Bail Opening Width: 2-3/4"
Maximum Heat Resistant Temperature: 300⁰F
