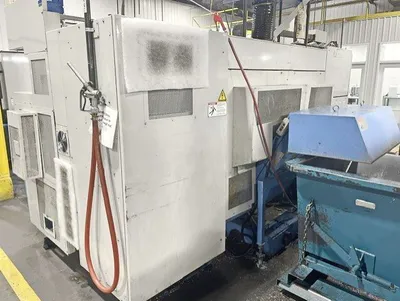

USED 1998 MAZAK Multiplex 420 Mark II
Overview
Description

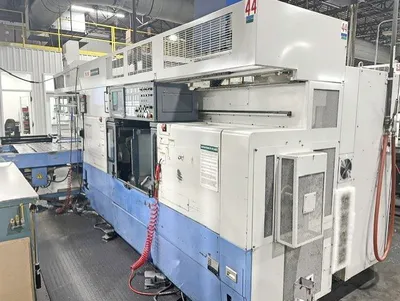

1998 Mazak Multiplex 420 Mark II Dual-Spindle Twin-Turret CNC Lathe, Gantry Loader / Unloader, 8 " Hydraulic Chucks, Parts Conveyor System, Chip Conveyor, Parts Handling Tables
Specifications
| Swing | 15.35" | 389.89 mm |
|---|---|---|
| Machining Length | 20.87" | 530.1 mm |
| Std Turning Dia | 10.24" | 260.1 mm |
| # Axis | 4 | 4 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2" | 50.8 mm |
| Spindle Bore | 2.4" | 6.1 cm |
| Power | 25 hp | 18.6 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Spindle Nose | A2-6 | A2-6 |
| X-Axis Travel | 9.05" | 229.87 mm |
| Z-Axis Travel (Left/Right) | 16.93" / 19.09" | 16.93" / 19.09" |
| Tailstock | No | No |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Rapid Traverse (X/Z) | 945 in/min. | 945 in/min. |
| Turret Capacity | 122 | 122 |
| Made In | Japan | Japan |

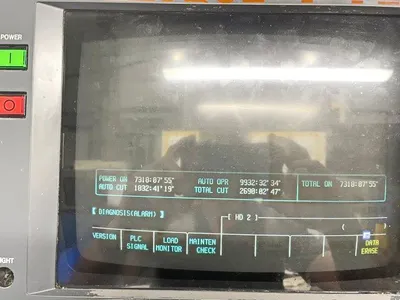

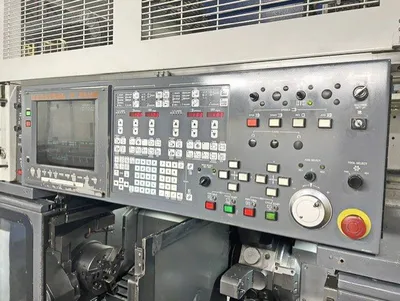

| Control | CNC (Mazatrol T-Plus) | CNC (Mazatrol T-Plus) |
| Dimensions | 152″ X 76″ X 74.8″ (Approx.) | 152″ X 76″ X 74.8″ (Approx.) |
| Weight | 18,400 lb | 18,400 lb |
Equipped With
Gantry loader / unloader system

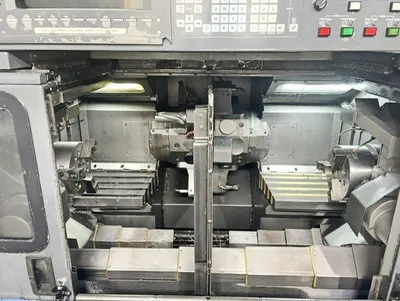

Dual opposed spindles
Twin turrets
8 " hydraulic chucks
Parts conveyor system
Chip conveyor

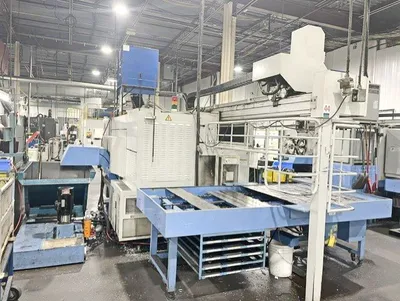

Automatic parts handling tables
Coolant tank & pump
Foot pedal controls
