USED 2004 ROMI M20
Overview

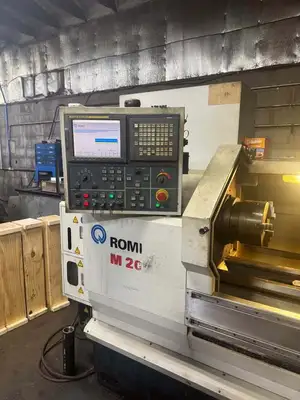

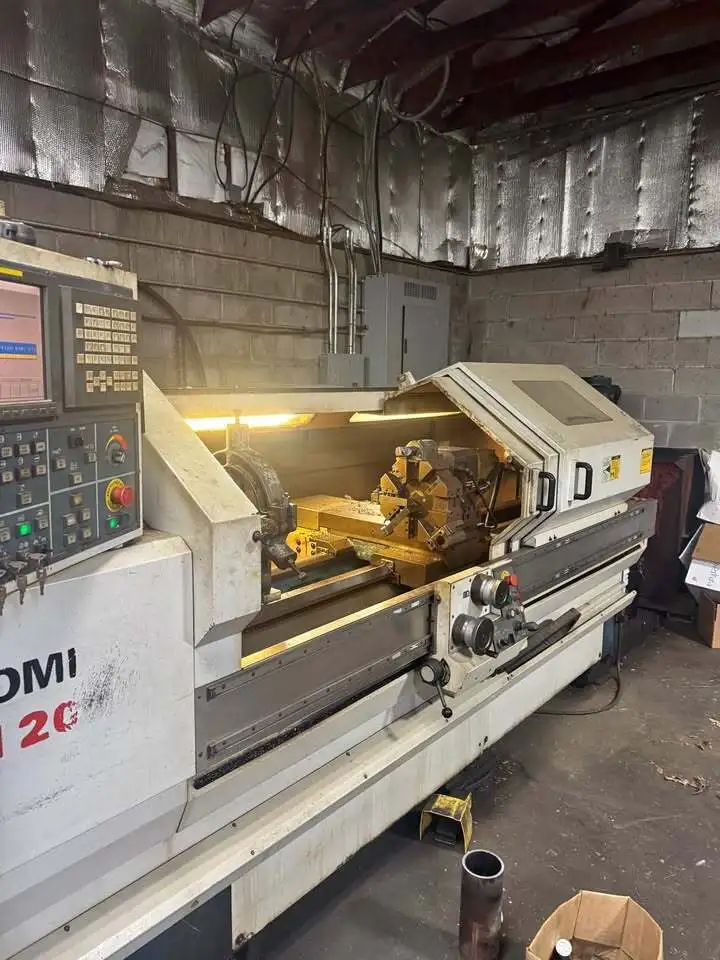

Romi M20 20" x 80" Flat Bed CNC Lathe (2004), 20" x 80", Fanuc 21i-T CNC Control with Manual Guidance, Conversational, G-Code and
Teach Modes, (2) MPG Handwheels for Manual Operation,
Specs
Romi M20 Flat Bed CNC Lathe
Swing over bed: 20″
Swing over cross slide: 10″
Swing over carriage: 17.7″
Distance between centers: 80″
Cross Slide Travel (X-Axis): 11.02″
Longitudinal Travel (Z – Axis): 80″
Bed Width: 13.39″
Hole through Spindle: 3.15″
Range of Spindle Speeds (INF Variable): 2 – 2,200 RPM
Rapid Traverse Z: 394 IPM
Rapid Traverse X: 295 IPM
Tailstock quick travel: 5.12″
Quill diameter: 3.15″
Quill Taper Hole: 4MT
Motor: 15 HP
Weight (approx): 10,000 Lbs
Dims (LxWxH): 156” X 60” X 80”
Tank (LxWxH): 100” X 40” X 22”
Equipped With
GE Fanuc Series 21i-T
Tailstock
Tool Post
Coolant System
Chip Pan
