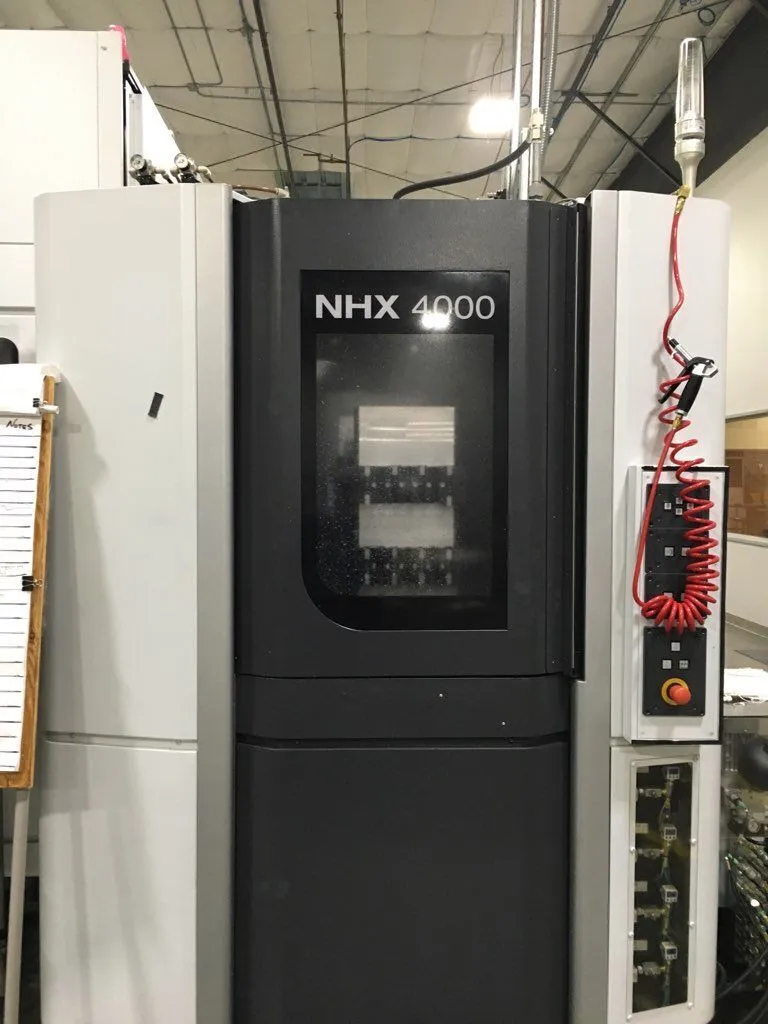

USED 2014 DMG MORI NHX 4000

2014 DMG MORI NHX 4000, a reliable horizontal machining center perfect for expanding your production capabilities. Known for its precision and efficiency, this used model delivers exceptional performance in industrial applications.

2014 DMG MORI NHX 4000 Horizontal Machining Center #8209

SPECIFICATIONS:
TRAVELS:
- X-AXIS: 22"
- Y-AXIS: 22"
- Z-AXIS: 26"
PALLET SIZE: 15.7" x 15.7"
MAX. WORKPIECE DIAMETER: 24.8"
MAX. WORKPIECE HEIGHT: 35.4"
PALLET LOAD CAPACITY: 881.8 LBS
PALLET (B-AXIS) INDEXING: SINGLE DEG.
PALLET STATIONS: 2
RAPID TRAVERSE RATE: 2,362 IPM
SPINDLE:
- TAPER: CT40
- SPEED: 12,000 RPM
- DRIVE MOTOR: 40 HP
ATC CAPACITY: 120 TOOLS
MAX. TOOL DIAMETER: 2.76"
MAX. TOOL LENGTH: 17.72"

EQUIPPED WITH:
MITSUBISHI M730BM CONTROL
1,000 PSI COOLANT THROUGH THE SPINDLE
CHIP BLASTER
REAR DISCHARGE CHIP CONVEYOR
