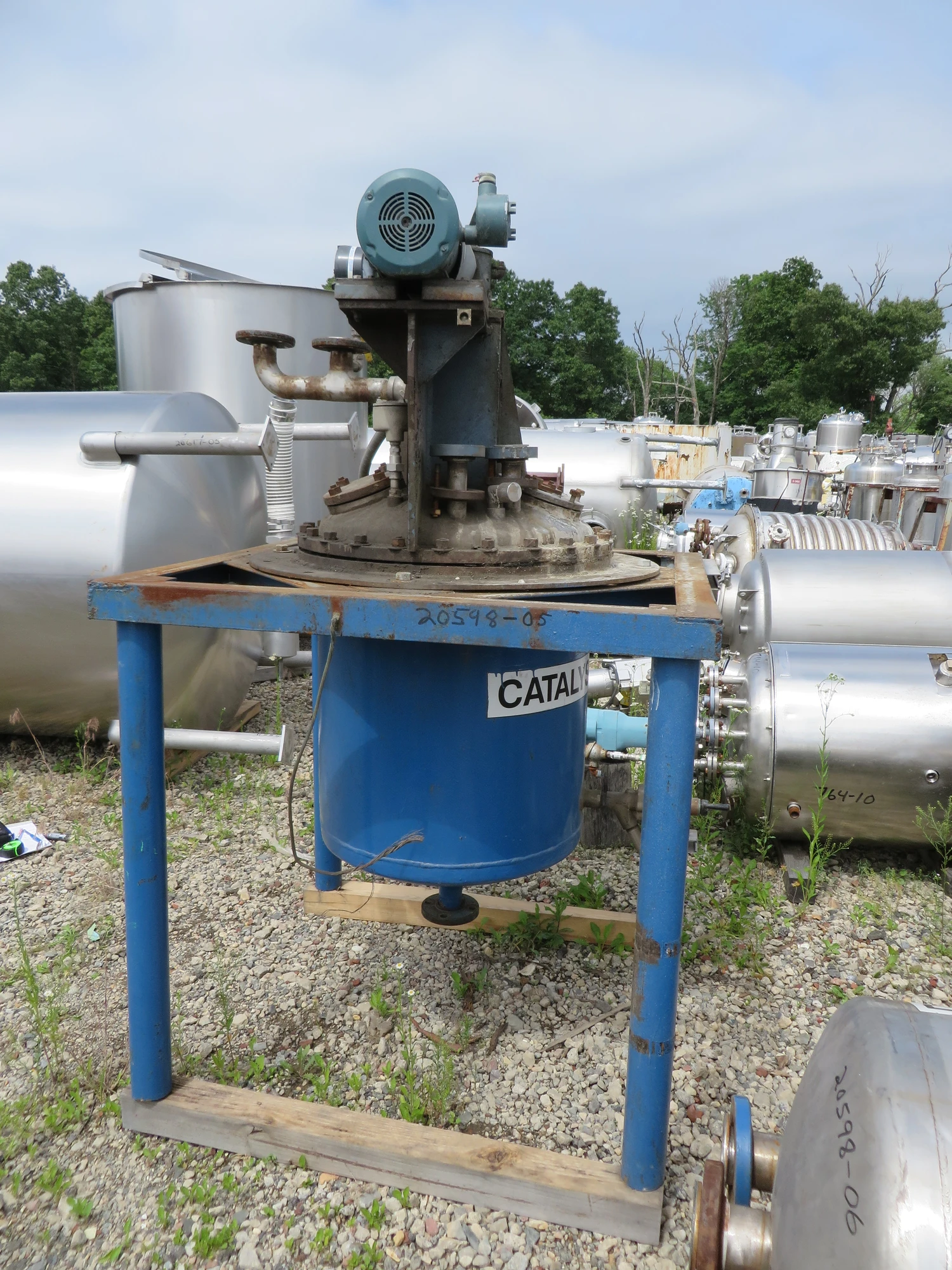

Used Approximately 45 Gallon Stainless Steel Jacketed Mix Tank
Capacity: 45 gallons
Dimensions: 24" dia. x 24" straight side
Top-mounted agitator driven by a 0.75 hp motor, 460 volt
Dish top, dish bottom
Mounted on steel frame
| Capacity | 45 gal | 170.3 L |
| Type of stainless | Stainless Steel | Stainless Steel |
| Diameter | 24" | 609.6 mm |
| Straight Side | 24" | 609.6 mm |
| Type Of Heads | Dish top, dish bottom | Dish top, dish bottom |
| Legs/Lugs | Mounted on steel frame | Mounted on steel frame |
| Dimensions | 24 dia. x 24 straight side | 24 dia. x 24 straight side |
