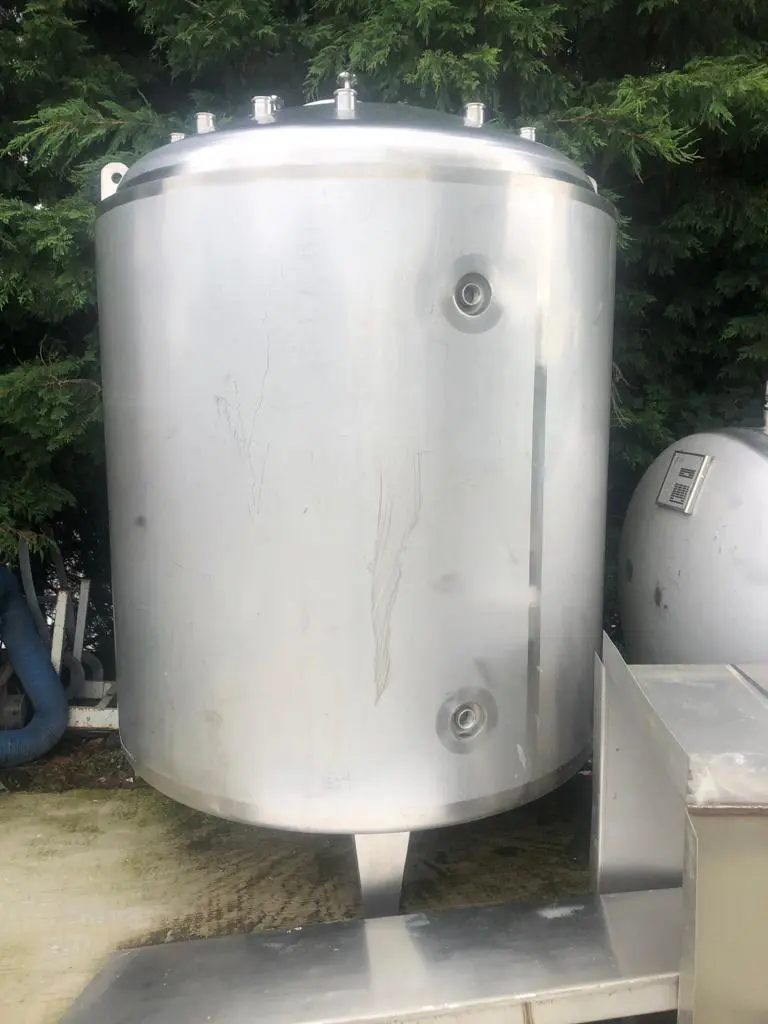

Unused Kells Stainless Ltd approximately 3,000 litre capacity 316L stainless steel vertical reactor body. Unit measures approximately 1,600mm diameter x 1,500mm straight side. Has welded dished top and bottom heads. Internal rated 2.5 bar/full vacuum design pressure at 150 deg.c. Has external 304 stainless steel dimple jacket rated 4 bar design pressure at 150 deg.c. Unit has provision for bottom entry mag-drive agitator but none currently fitted. Unit is mounted on (3) stainless steel legs.
| Capacity | 793 gal | 3,001.8 L |
| Type of stainless | 316L | 316L |
| Internal Pressure | 36.3 PSI | 2.5 bar |
| Internal Temperature | 302°F | 150°C |
| Jacket Pressure | 58 PSI | 4 bar |
| Diameter | 62.992" | 1,600 mm |
| Straight Side | 59.055" | 1,500 mm |
| Type Of Heads | welded dished top and bottom | welded dished top and bottom |
| Legs/Lugs | 3 | 3 |
| Dimensions | 1600mm diameter x 1500mm straight side | 1600mm diameter x 1500mm straight side |
