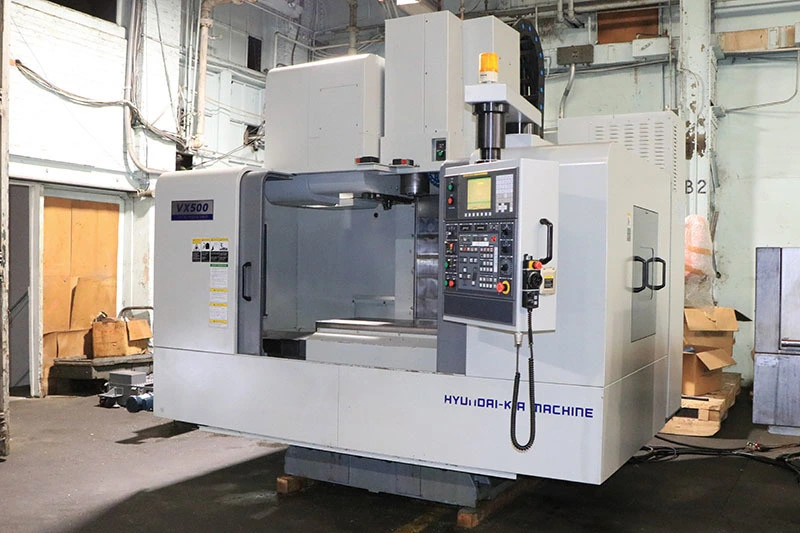

2012 HYUNDAI WIA VX500 VMC: robust 10,000 RPM CAT 40 spindle, 24 tool ATC, X/Y/Z travels 41.7"/20.1"/25", FANUC Oi-MD CNC, oil chiller, chip conveyor.
| X | 41.6" | 1,056.6 mm |
| Y | 20" | 508 mm |
| Z | 24.7" | 627.38 mm |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 24 | 24 |
| Table-W | 19.6" | 497.84 mm |
| Table-L | 47.1" | 1,196.3 mm |
| Weight | 15,500 LBS | 15,500 LBS |
X-AXIS TRAVEL.......................... 41.7"
Y-AXIS TRAVEL.......................... 20.1"
Z-AXIS TRAVEL.......................... 25"
TABLE SIZE............................. 47.2" X 19.7"
MAX TABLE CAPACITY..................... 1,764 LBS
SPINDLE SPEEDS......................... 10,000 RPM
SPINDLE TAPER.......................... CAT 40
RAPID TRAVERSE RATE (X & Y/Z).......... 1,417/1,181 IPM
AUTOMATIC TOOL CHANGER POSITIONS....... 24
SPINDLE MOTOR.......................... 20 HP
APPROXIMATE MACHINE WEIGHT ............ 15,500 LBS
APPROXIMATE FLOOR SPACE ............ 120"W x 83"L x 111.5"H
- FANUC Oi-MD CNC CONTROL
- SIDE MOUNTED TOOL CHANGER 24 TOOL CAPACITY
- OIL CHILLER
- CHIP AUGER INTO A CHIP CONVEYOR
- 20 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
