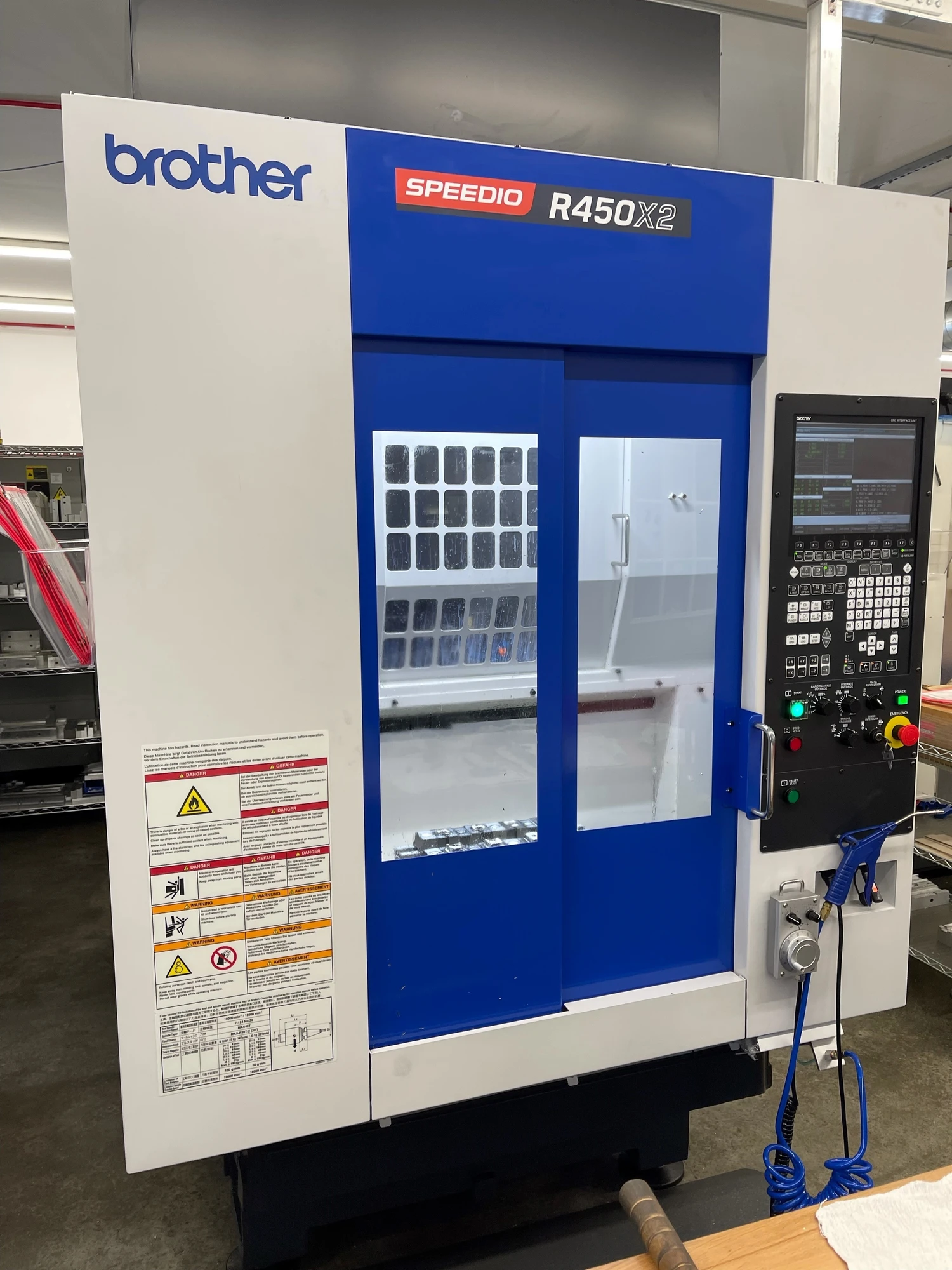

USED 2021 BROTHER Speedio R450X2

New York, United States
138Listings|78Followers
Overview
Vertical Machining Centers

2021 Brother Speedio R450X2, compact CNC with dual pallets, 16K RPM, BT-30, 22 ATC, CTS, and Brother CNC-C00 control. Ideal for fast, precise machining.

Specs
X
17.7"
449.58 mm
Y
12.6"
320.04 mm
Z
12"
304.8 mm
Power
13 hp
9.7 kW
RPM
16,000 RPM
16,000 RPM
# ATC
22
22
Taper
BT-30
BT-30
Rapid Traverse Rate
1969
1969
Dimensions
55" x 105" x 102" tall
55" x 105" x 102" tall
Weight
6,000 lbs
6,000 lbs

Quick turn table specifications
Type 0 degree/180 degree turntable system
Table dimension one face 23.6" x 16.5"
Table work area size 26.6" x 11.8"
Max loading capacity 441 lbs
Table position time 2.9 seconds

Equipped With

Brother CNC-COO cnc control
16,000 rpm spindle
2 pallet
Manual pulse generator
2 work lights
Coolant through spindle 435 psi
High accuracy Mode B2
Spindle override
Auto grease
Tool wash system
22 position automatic tool changer
