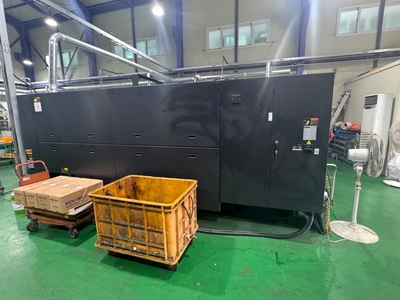

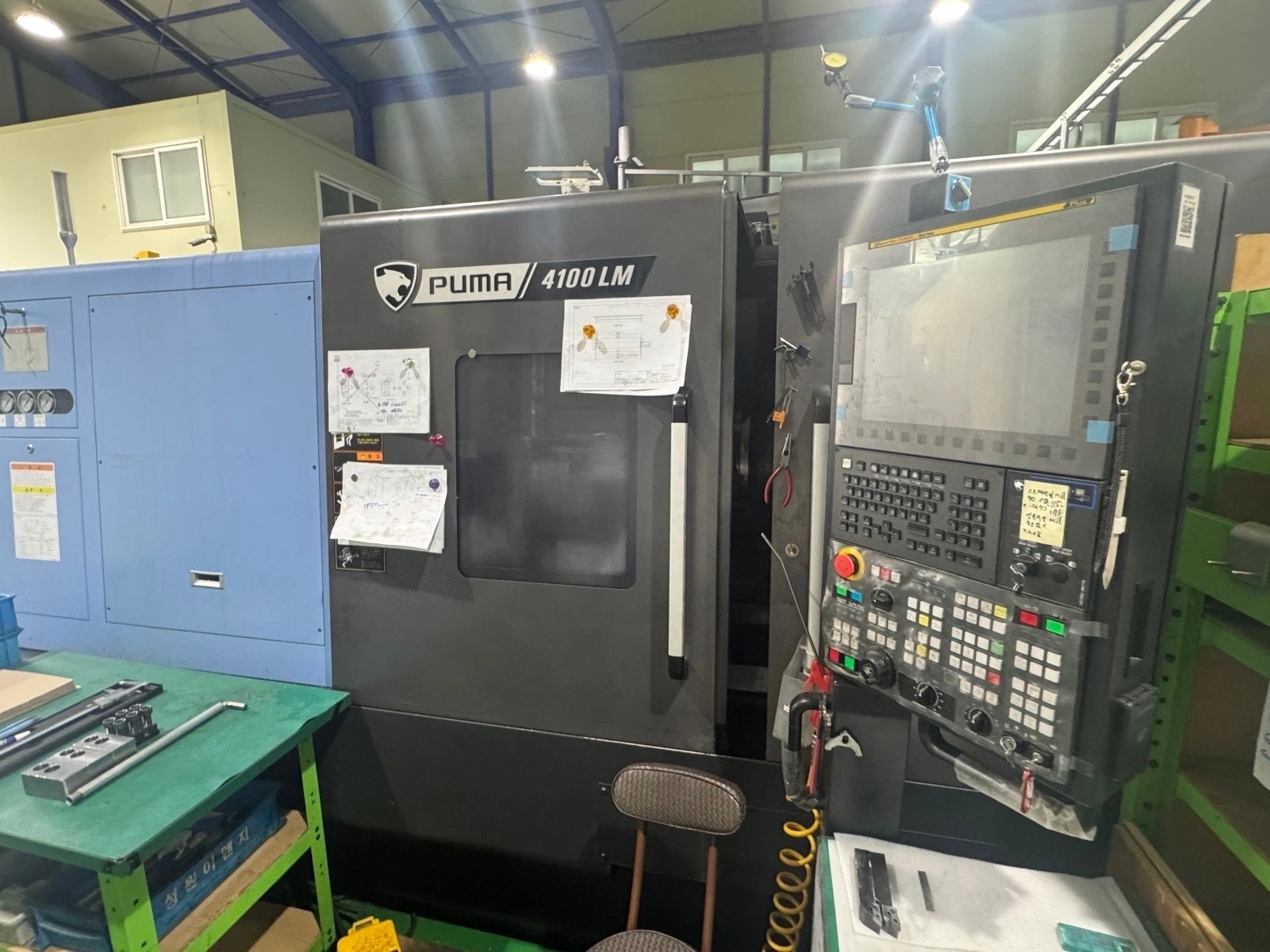

Explore precision with the 2023 DN SOLUTIONS PUMA 4100LMA CNC Universal Turning Center. Equipped for versatile 2-axis and 3-axis lathing, it features a 12" chuck, 50 HP spindle, and a machining length of 79.8" and with hydraulic open / close steady rest. Perfect for heavy-duty tasks.
| Swing Over Bed | 31.1" | 789.94 mm |
| Machining Length | 79.8" | 2,026.9 mm |
| Distance Between Centers | 84.7" | 2,151.4 mm |
| Turning Diameter, Shaft Diameter | 22" | 558.8 mm |
| Distance Between Spindles | 0" | 0 mm |

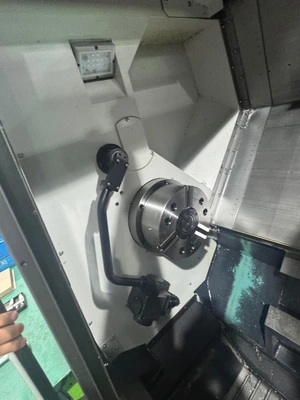

| Chuck Size 1 | 12" | 304.8 mm |
| Spindle Nose 1 | A2 - 8 | A2 - 8 |
| Spindle Bore Diameter 1 | 4" | 101.6 mm |
| Spindle Speeds 1 | 3,000 RPM | 3,000 RPM |
| Spindle Horsepower 1 | 40 hp | 29.8 kW |
| X1 - Axis Travel | 13.9" | 353.06 mm |
| Z1 - Axis Travel | 84.8" | 2,153.9 mm |
| Rapid Traverse Rate - X1 | 707 in/min. | 299.3 mm/sec. |
| Rapid Traverse Rate - Z1 | 787 in/min. | 333.2 mm/sec. |
| Turret Configuration 1 | 12 | 12 |
| Turret Rotary Tool Spindle Speed 1 | 4,000 RPM | 4,000 RPM |
| Turret Rotary Tool Horse Power 1 | 10 hp | |
| Tailstock Quill Diameter | 4.7" | 119.38 mm |
| Tailstock Taper | MT 6 | MT 6 |
| Tailstock Quill Travel | 4.7" | 119.38 mm |
| Programmable Tailstock | YES | YES |
| Tailstock Travel | 80.7" | 2,049.8 mm |
| # Axis | 3 | 3 |
| Bar Capacity | 4.6" | 116.84 mm |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'Yes' | 'Yes' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC | CNC |
| Weight | 0.00 | 0.00 |
Swing Over Bed: 31.1"
Turning Diameter, Shaft Diameter: 22"
Machining Length: 79.8"
Distance Between Centers: 84.7"
Distance Between Spindles: 0
Chuck Size 1, 2: 15"
Spindle Nose 1, 2: A2 - 11
Spindle Bore Diameter 1, 2: 5.2"
Spindle Bar Capacity 1, 2: 4.6"
Spindle Speeds 1, 2: 2,000 RPM
Gear Ranges: 2
Spindle Horsepower 1, 2: 50 HP
Spindle Torque: 0
X - Axis Travel 1, 2: 14.3"
Z - Axis Travel 1, 2: 84.8"
C - Axis Travel 1, 2: .001 DEG.
W - Axis Travel Sub Spindle: 0
Rapid Traverse Rates X1, X2: 630 IPM
Rapid Traverse Rates Z1, Z2: 787 IPM
Rapid Traverse Rate W Axis: 0
Rapid Traverse C Axis: 0

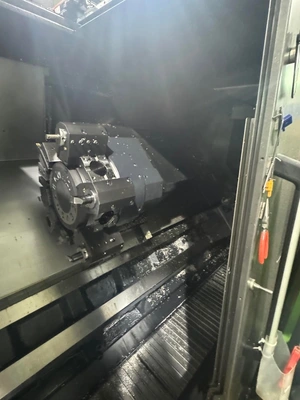

Turret Configuration 1, 2: 12
Turret Rotary Tool Spindle Speed 1, 2: 4000 RPM
Turret Rotary Tool Horse Power 1, 2: 14.8 HP
Tailstock Quill Diameter: 4.7"
Tailstock Taper: MT 6
Tailstock Quill Travel: 4.7"
Programmable Tailstock: YES
Tailstock Travel: 80.7"
Machine Weight: 26,675 LBS.
DOOSAN EZ GUIDE I CONVERSATIONAL PROGRAMMING
PROGRAMMABLE TAILSTOCK
.001 C-AXIS INDEXING
(2) I. D. ROTARY HEADS
(2) O. D. ROTARY HEADS
SPINDLE CHILLER
CUSTOM MACRO
CHIP CONVEYOR
FANUC SERIES I CNC CONTROL
AUTOMATIC TOOL SETTER
