USED APPLETON 90"

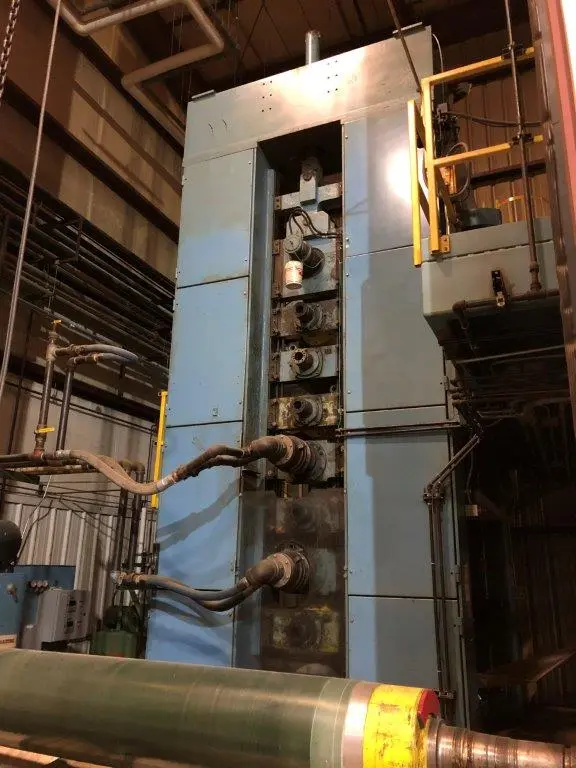

Used Appleton 9-Roll Super Calender, 90 inch wide.

- Trim width range: 40 inch to 90 inch
- Roll face width: 100 inch
- King and Queen roll diameter: 24 inch
- Calender roll diameter: 20 inch
- Supports paper weights from 32 to 550 grams per square meter (gsm)
- Maximum speed: 2500 feet per minute (fpm)
- Nip pressure range: 100 to 2000 pounds per square inch (psi), with 1 to 8 nips
- Maximum roll weight: 8000 pounds
- Includes a bowed roll
- Martin RH 92 2/83 unwind system with hydraulic package and clutch brake
- Track reel with 30 inch diameter drum and 92 inch face
- Budzar heat package
- Lubrication system included
