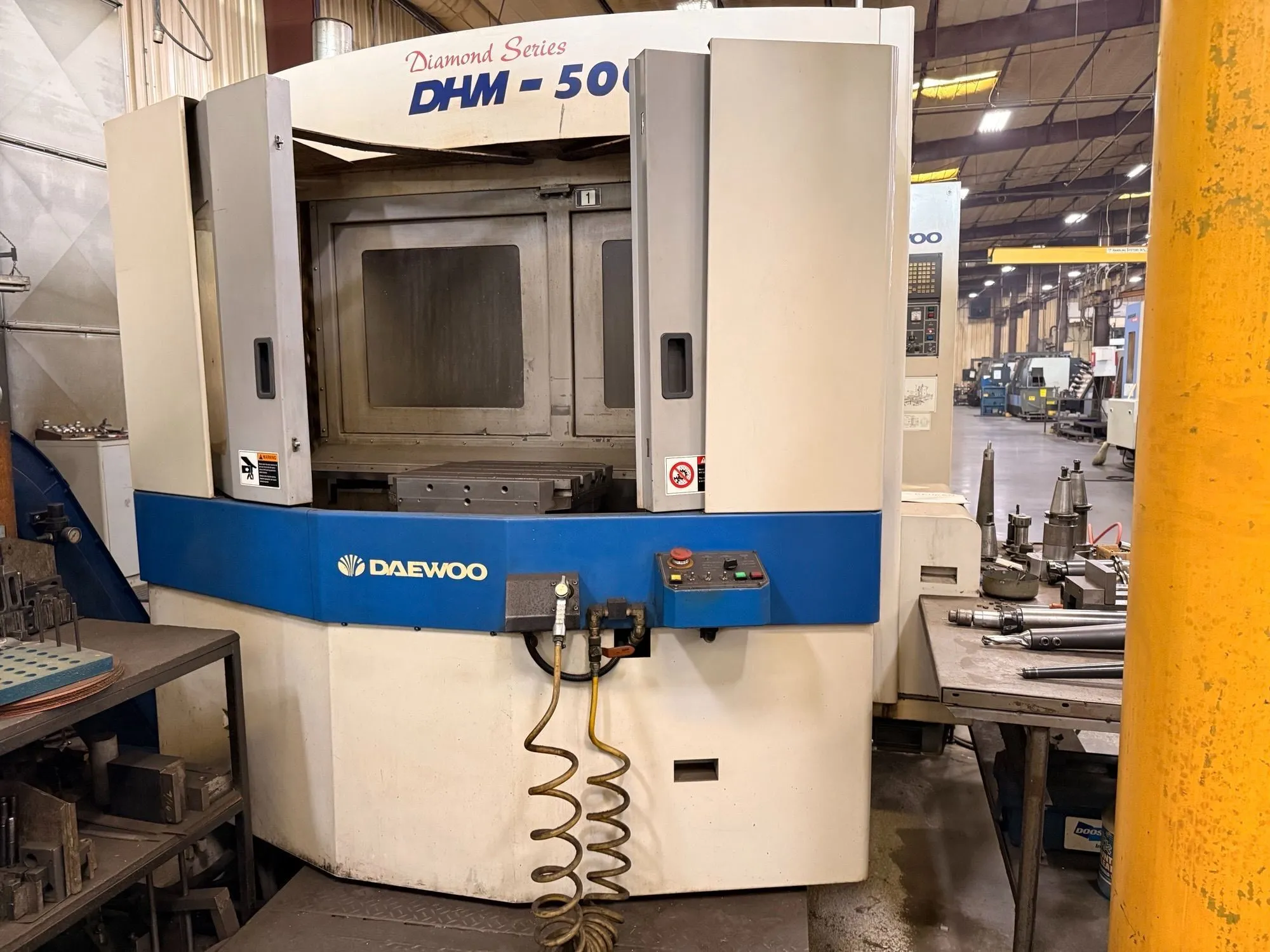

DAEWOO DHM 500, built in 2002. With it's 6,000 RPM spindle, it's equipped with 31.5" X, 25.6" Y, 25.6" Z specifications. It boasts a 60 ATC, and CAT 50 taper. The pallet dimensions are W:19.7" and L:19.7". Plus, it's optimized with Fanuc 16, CTS.
| X | 31.5" | 800.1 mm |
| Y | 25.6" | 650.24 mm |
| Z | 25.6" | 650.24 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 60 | 60 |
| Taper | 50 | 50 |
| Pallet-W | 19.7" | 500.38 mm |
| Pallet-L | 19.7" | 500.38 mm |
| Control | CNC (FANUC 16-M) | CNC (FANUC 16-M) |
Fanuc 16M CNC Control
60 Position Automatic Tool Changer
Cat-50 Spindle
Coolant Through the Spindle
Chip Conveyor
1 Degree table Indexing (360 Degree)
2-Pallet Changer System (19.7" x 19.7" pallets)
Wired 220V/3/60
Spindle Speed - 3 Gear Ranges, 20 to 6,000 RPM
Pallet Load Capacity 1,760 Lbs
Inspect Under Power in Joplin, MO. Runs great with no Issues
