USED NAGEMA 630 LITRE
Overview
Description

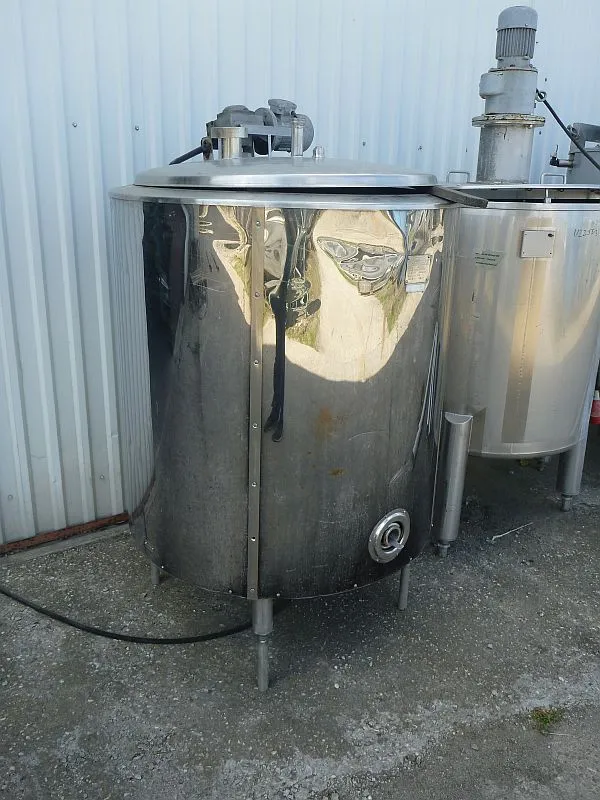

Used stainless steel jacketed vertical mixing tank by Nagema (Germany) with working volume 630 liters. Jacket is insulated and layered with stainless steel. Tank has top cover with mounted propeller agitator, manually operated. Agitator is driven by gearbox and electric motor 0.35 kW. Tank is mounted on 4 stainless steel legs. Discharge by bottom wall side outlet.
Internal dimensions: diameter: 920 mm x height 950 mm.
Shipping dimensions: diameter 1150 mm x height 1950 mm x weight approx. 400 kg.
Specifications
| Capacity | 630 L | 166.4 gal |
|---|---|---|
| Diameter | 920 mm | 3.02' |
| Height | 950 mm | 3.12' |
| Vertical/Horizontal | Vertical | Vertical |
| Legs/Lugs/Skirt | Legs | Legs |
| Dimensions | 3.02 ft x 3.12 ft | 3.02 ft x 3.12 ft |
| Weight | 400 kg | 400 kg |
