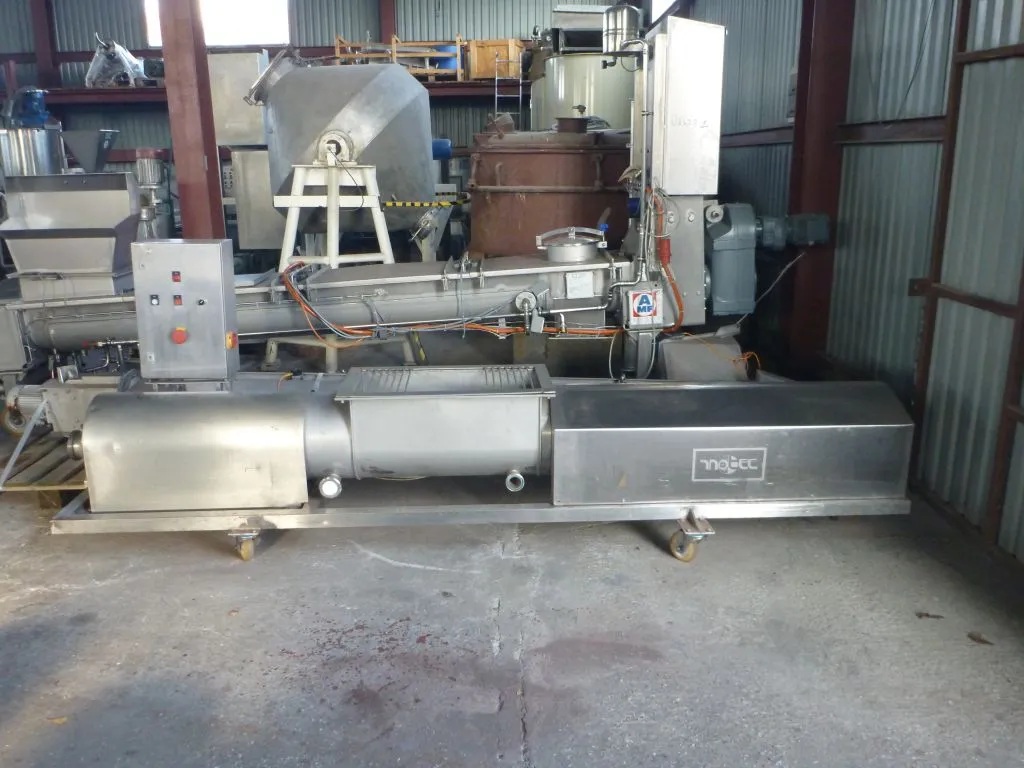

USED INOTEC/NETZSCH NEMO NM 076 SF 02 S12B

Used stainless steel contact parts progressing cavity pump by Inotec/Netzsch type NEMO NM 076 SF 02 S12B. Machine is driven by el motor 11 kW, 1455 rpm, 400/690 V, 50 hz, via Nord reducer. Working rpm of rotor up to 201 rpm. Pump has feeding inlet with dimensions L 750 mm x W 365 mm, limited by safety bars to dimensions L 320 mm x W 365 mm. Product is moved with stainless steel screw, with diameter 300 mm. Lead of screw 145 mm. Below screw there are two liquid outlets, each with diameter 50 mm. Pump product discharge outlet has diameter 100 mm. Pump has local control panel and is mounted on stainless steel mobile frame. Technical documentation is not included. Last time used in food industry.
