USED ZUGIL 12500 Liters

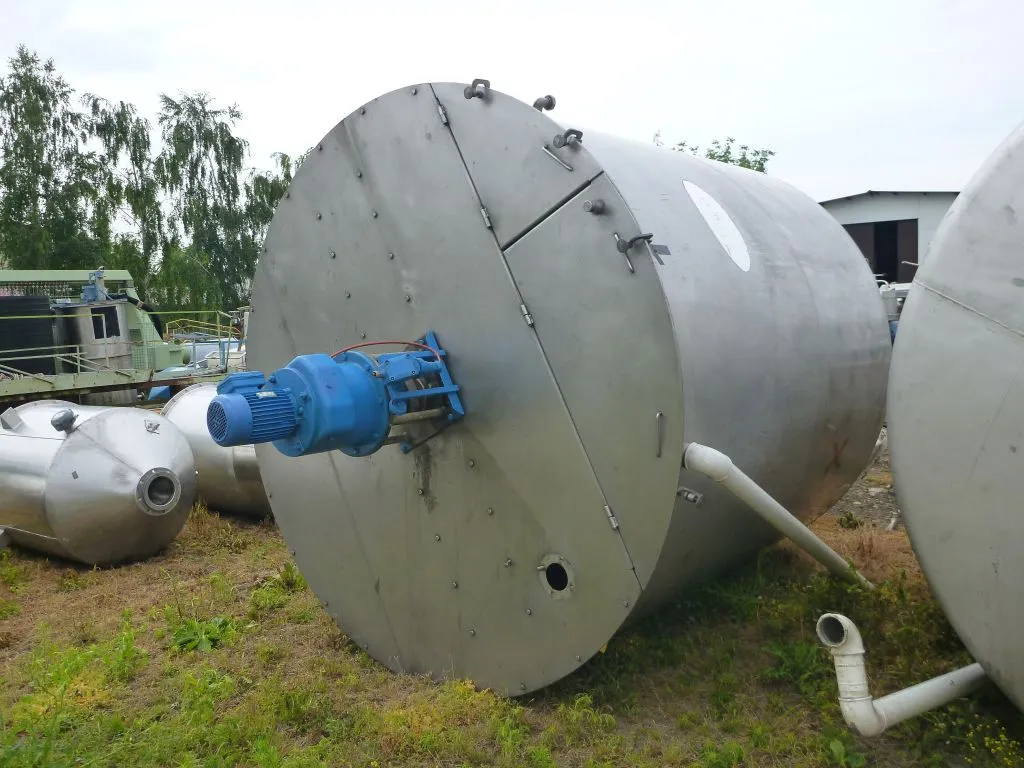

Used vertical stainless steel (AISI 304) mixing tank by ZUGIL (Poland) with a working volume 12500 l. Inside dimensions: diameter 2600 mm x length of straight side of wall 2550 mm. Tank has top mounted 2 level paddle type agitator, driven by reducer and el. motor with power 4 kW, 380 volt 3/50 Hz. Working rotation of agitator up to 18 rpm. Agitator is supported at bottom. Mixing chamber is equipped with 4 baffles welded to the wall. Top flat, with bolted stainless steel cover, equipped with hinged inspection manway. Bottom, elipsoidal, welded, with central discharge outlet. Tank is mounted on (3) legs carbon steel legs. Last time used in chemical production.
