USED AMS TEXTILE MACHINERY 1900 L

Overview
Model:
1900 L
Stock #:
U2418-4
Description

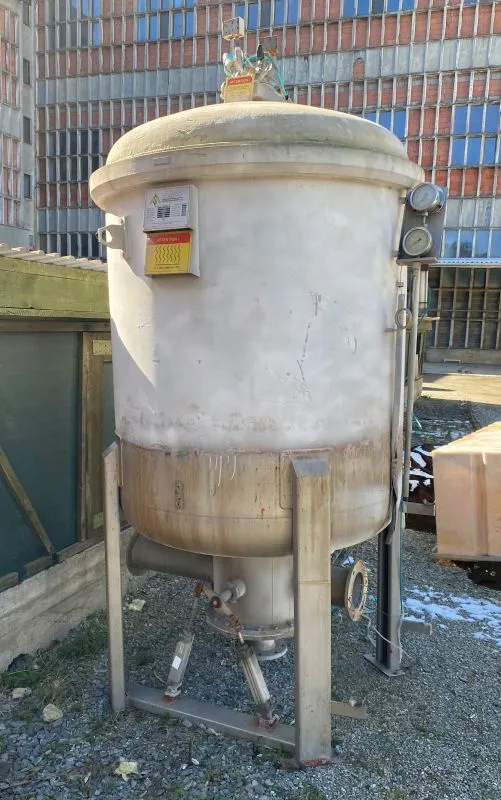

Used vertical stainless steel storage tank by AMS Textile Machinery Co. (TU). Tank has total volume 1900 l. Internal diameter 1280 mm x length of straight side of wall 1330 mm. Tank is rated for work on pressure up to 4 bar and temperature up to 135 C. Top and bottom elipsoidal. Top pneumatically risen. Bottom welded, with central discharge outlet. Three connections on discharge - bottom with diameter 125 mm and side outlets with diameter 140 and 158 mm. Tank is mounted on 4 stainless steel legs. Last time used in textile industry as dye tank. Technical documentation is not included.

Specifications
Capacity501.9 gal1,900 L
Diameter4.2'1,280.2 mm
Height4.37'1,332 mm
Type of stainlessStainless steelStainless steel
Type Of HeadsTop pneumatically risen. Bottom weldedTop pneumatically risen. Bottom welded
Vertical/HorizontalVerticalVertical
Legs/Lugs/Skirt44
DimensionsDiameter 1280 mm x Height 1330 mmDiameter 1280 mm x Height 1330 mm
