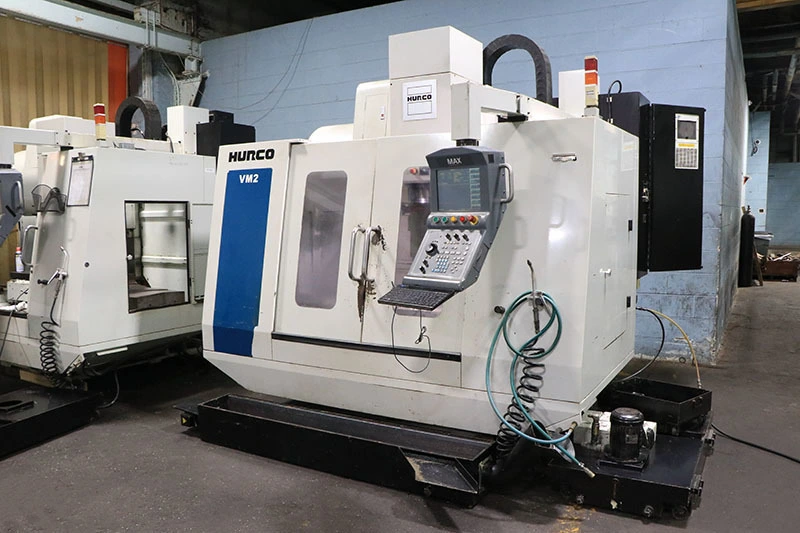

Hurco VM2 Vertical Machining Center, 2005. Used, with 40"x18"x18" travel, CAT-40 spindle, 20 HP motor, and 16 tool positions. Includes Hurco Max CNC control, rigid tapping, and chip auger. Located in NJ warehouse.
| X | 40" | 1,016 mm |
| Y | 18" | 457.2 mm |
| Z | 18" | 457.2 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 16 | 16 |
| Table-W | 18" | 457.2 mm |
| Table-L | 46" | 1,168.4 mm |
SPECIFICATIONS:
X-AXIS TRAVEL ......................... 40"
Y-AXIS TRAVEL ......................... 18"
Z-AXIS TRAVEL ......................... 18"
TABLE WORKING SURFACE ................. 46" X 18"
MAXIMUM TABLE LOAD .................... 1,200 LBS
SPINDLE TAPER ......................... CAT-40
SPINDLE SPEED ......................... 8,000 RPM
SPINDLE MOTOR ......................... 20 HP
RAPID TRAVERSE (X,Y/Z) ................ 750/710 IPM
TOOL STORAGE CAPACITY ................. 16 POSITIONS
FLOOR SPACE REQUIRED .................. 100" X 80" X 100"
APPROXIMATE MACHINE WEIGHT ............ 9,000 LBS
* HURCO MAX CNC CONTROL
* HURCO CONVERSATIONAL AND G CODE PROGRAMMING
* RIGID TAPPING, ULTINET, GRAPHICS, EXTENDED HDD & MEMORY
* AUTOMATIC TOOL CHANGER (16 TOOL CAPACITY)
* FLOOD COOLANT
* CHIP AUGER
* 20 HORSE POWER SPNDLE DRIVE & MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
