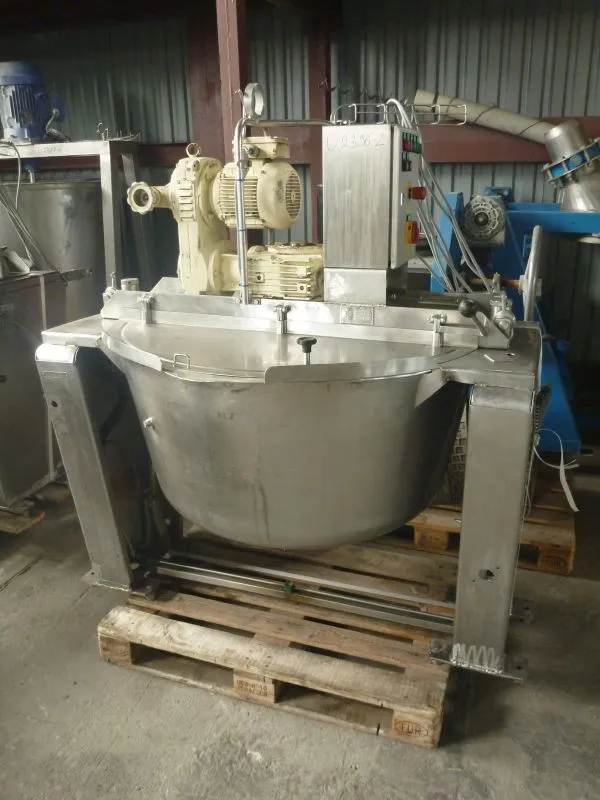

USED BIONAZ 300 L

Used stainless steel vertical mixing tank by Bionaz (FR) with total volume 440 l and working volume 300 l. Tank has internal diameter 1120 mm x length of straight side of wall 510 mm. Mixing chamber has shape truncated cone with elipsoidal bottom. Top open, with both sides covered with stainless steel safety framework and manually operated covers. Tank is layered with stainless steel heating jacket. Discharge via tilt, operated hydraulicaly. Missing hydraulic device. Tank is equipped with stainless steel anchor agitator, driven by el. motor 1.5 kW, 1400 rpm, 220/380 V, 50 HZ via vari-speed gearbox. Working rotation of agitator adjustable in range from 10.5 up to 61 rpm. Tank is mounted on two stainless steel supports and has local control panel. Last time used in food industry.
