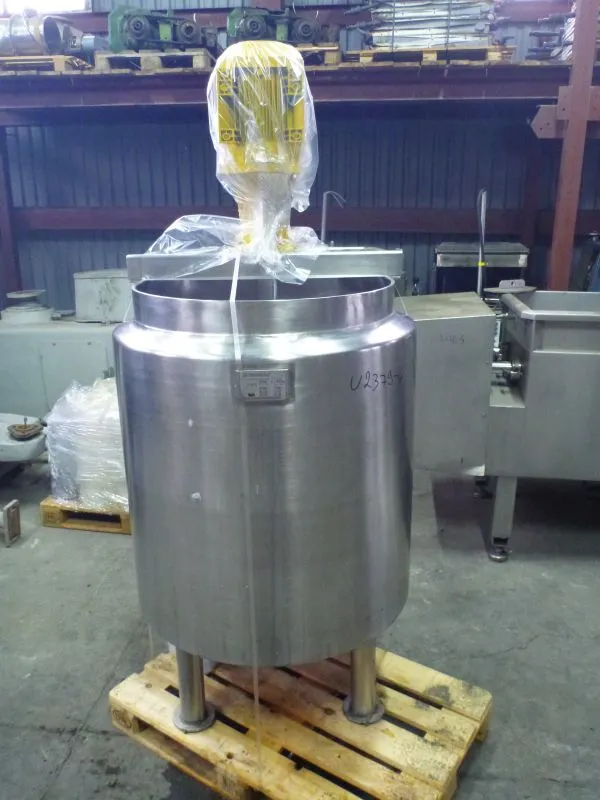

USED SCHWARZ 400 Liters

Used vertical jacketed stainless steel tank by Schwarz (DE) with homogenizing agitator Ytron. Tank has internal diameter 790 mm x length of straight side of wall 870 mm. Bottom elipsoidal, with central discharge outlet, equipped with manually operated valve. Total volume about 450 l, working volume about 400 l. Tank has bottom and side walls jacketed. Jacket has volume 53 l and is rated for work on pressure 2.5 bar at temperature up to 138 C. Top open, with mounted homogenizing axial jet stream agitator by Ytron (DE) type Y 5.50 FC-2/VM-10-III, driven directly by el motor 5.5 kW, 2855 rpm, 380-420V, 50 hz. Tank is mounted on 3 stainless steel legs and is equipped with three tension cells. Last time machine was used in cosmetic industry.
