Used

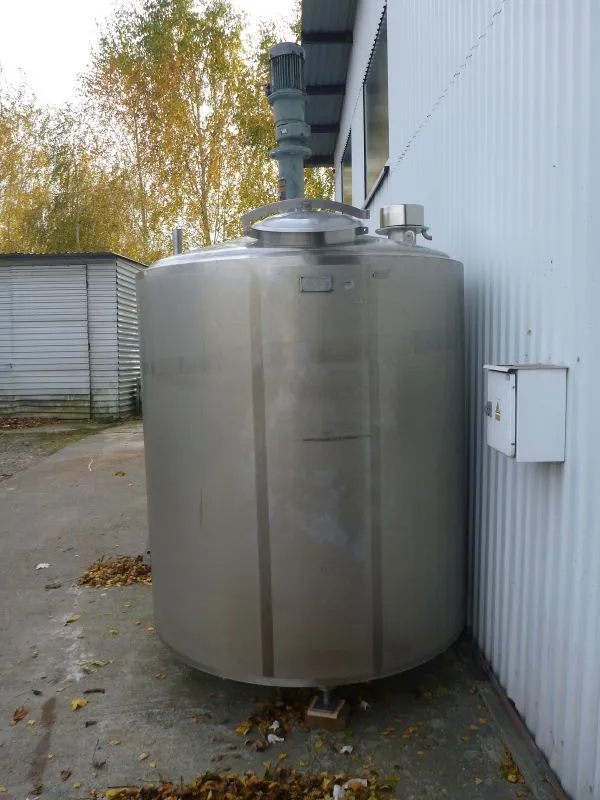

USED 2000 ARGO AZ3-3

Poland
Since 1932, Perry has been buying and selling high quality used process equipment for the chemical, pharmaceutical, food, plastics and paper industries.
Overview
Stainless Steel Tanks

Used stainless steel vertical mixing tank by Argo (PL) type AZ3-3,5. Total volume 3500 l. Tank has thermal insulation and is equipped with jacket on bottom and side walls. Internal dimensions: diameter 1640 mm x length of straight side of wall 1600 mm. Tank is equipped with four blades paddle agitator, driven via gearbox and el. motor with power about 3 kW, 1420 rpm, 400-690 V, 50 hz. Working rotation of agitator about 476 rpm. Bottom discharge outlet at side wall. Tank is mounted on three stainless steel legs. Last time used in food industry.

Specs
Capacity
875 gal
3,312.2 L
Diameter
1,640 mm
5.38'
Height
1,600 mm
5.25'
Type of stainless
Stainless steel
Stainless steel
Vertical/Horizontal
Vertical
Vertical
Legs/Lugs/Skirt
3 legs
3 legs
