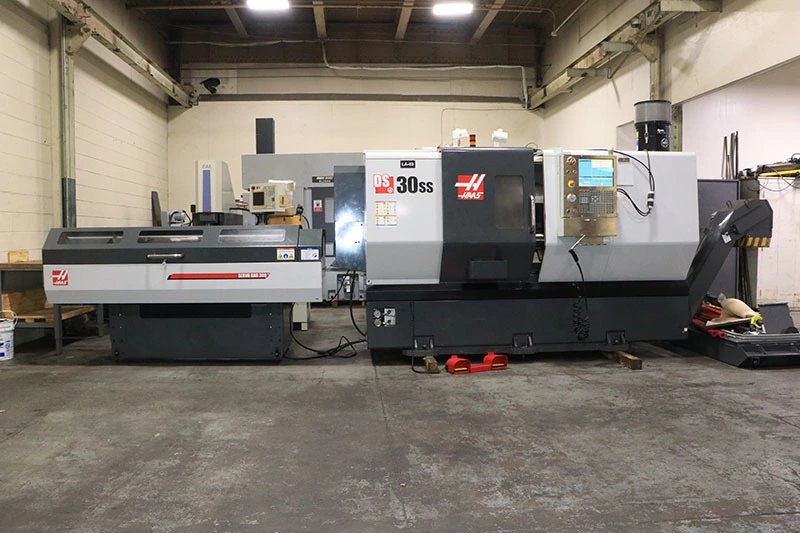

USED 2012 HAAS DS-30SS
Overview
Haas Model: DS-30SS CNC Lathe from 2012. With a swing over bed of 31.75", maximum turning diameter of 16", and X-axis travel of 12.5", this lathe is perfect for precision machining. Equipped with a Haas CNC control, 12-station turret, Sub-Spindle and high-pressure coolant.
Specs
SPECIFICATIONS:
SWING OVER BED ........................ 31.75"
SWING OVER CROSS SLIDE ................ 20.75"
MAXIMUM TURNING DIAMETER .............. 16"
MAXIMUM TURNING LENGTH ................ 26.11"
X-AXIS TRAVEL ......................... 12.5"
Z-AXIS TRAVEL ......................... 26"
SPINDLE SPEED, MAIN/SUB SPINDLE ....... 4,800 RPM
SPINDLE BORE .......................... 2.44"
SPINDLE NOSE, MAIN .................... A2-6
SPINDLE MOTOR, MAIN ................... 30 HP
SPINDLE NOSE, SUB ..................... A2-5
SPINDLE MOTOR, SUB .................... 20 HP
Overall Dimensions: 130″ x 67″ x 72″ High
Overall Dimensions: 146″ x 67″ x 72″ High with Chip Conveyor
Weight: 16,000 lbs
Equipped With
HAAS CNC CONTROL
MAIN SPINDLE & SUB-SPINDLE
12-STATION TURRET WITH 24-TOTAL POSITIONS
HAAS BARFEEDER - MODEL BAR 48B WITH SPINDLE LINERS
ROYAL QUICK CHANGE 42 COLLETS FOR MAIN AND SUB SPINDLE
TOOL EYE
AUTO CHIP BLAST
HIGH PRESSURE COOLANT
RIGID TAPPING
SPINDLE ORIENTATION
PARTS CATCHER
HENNIG CHIP CONVEYOR
ROYAL MIST FILTER
MISCELLANEOUS TOOLING
HIGH UNTENSITY LIGHTING
