300 L Vertical Melting Tank With Heating Jacket And Grate
Overview
Description

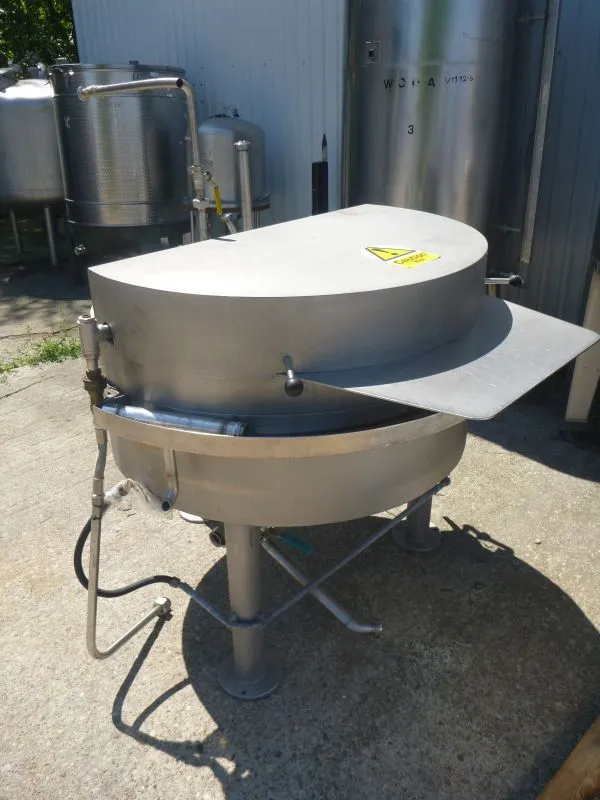

Used stainless steel melting tank with working volume 300 l. Tank has internal diameter 1000 mm x length of straight side of wall 360 mm. Bottom conical with central discharge outlet, equipped with manually operated valve. Bottom and side walls are covered with stainless steel heating jacket. Tank is equipped with stainless steel melting grate and manually rised top cover designed in stainless steel. Working temperature up to 50C. Tank is mounted on 3 stainless steel legs. Shipping dimensions: L 1400 mm x D 1400 mm x H 1600 mm.
Specifications
| Capacity | 79.2 gal | 300 L |
|---|---|---|
| Diameter | 3.28' | 1,000 mm |
| Height | 1.18' | 360 mm |
| Type of stainless | Stainless steel | Stainless steel |
| Vertical/Horizontal | Vertical | Vertical |
| Legs/Lugs/Skirt | 3 | 3 |
| Dimensions | 4.59317 ft x 4.59317 ft x 5.24934 ft | 4.59317 ft x 4.59317 ft x 5.24934 ft |
