USED 2000 Kates VE-47715

Poland
Since 1932, Perry has been buying and selling high quality used process equipment for the chemical, pharmaceutical, food, plastics and paper industries.
Overview
Stainless Steel Tanks

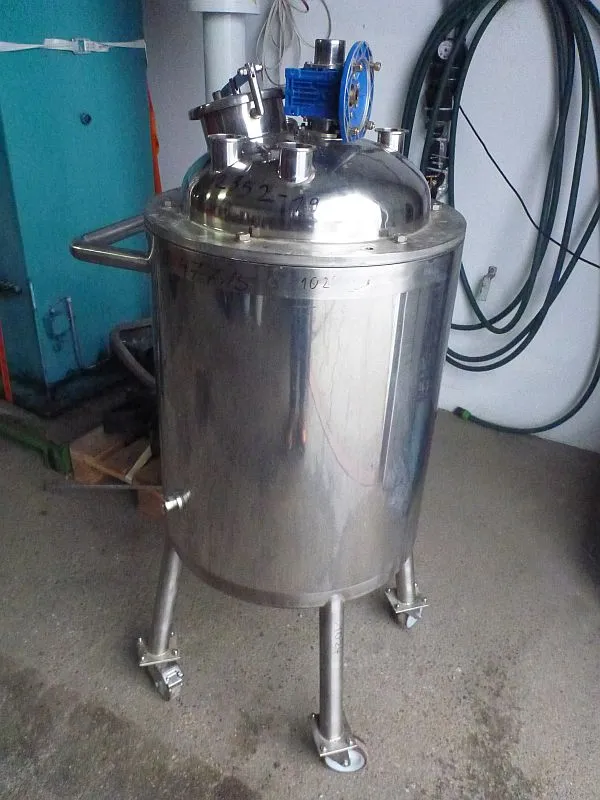

Used, mobile, vertical stainless steel mixing tank by Kates (PL) type VE-47715, with working volume 100 l. Total volume about 120 l. Tank has internal diameter 450 mm x 710 mm length of straight side of wall. Bottom welded, elipsoidal with central discharge outlet. Top bolted, has inspection manway with diameter 150 mm and bolted lid. Side walls and bottom are layered with thermal insulation. Tank is equipped with anchor agitator driven by gearbox. Missing electrical motor. Tank is mounted on four stainless steel legs with wheels.

Specs
Capacity
26.4 gal
99.9 L
Diameter
1.48'
451.1 mm
Height
2.33'
710.18 mm
Type of stainless
Information not available
Information not available
Type Of Heads
Bolted Top, Welded Bottom
Bolted Top, Welded Bottom
Vertical/Horizontal
Vertical
Vertical
Legs/Lugs/Skirt
Four Legs with Wheels
Four Legs with Wheels
