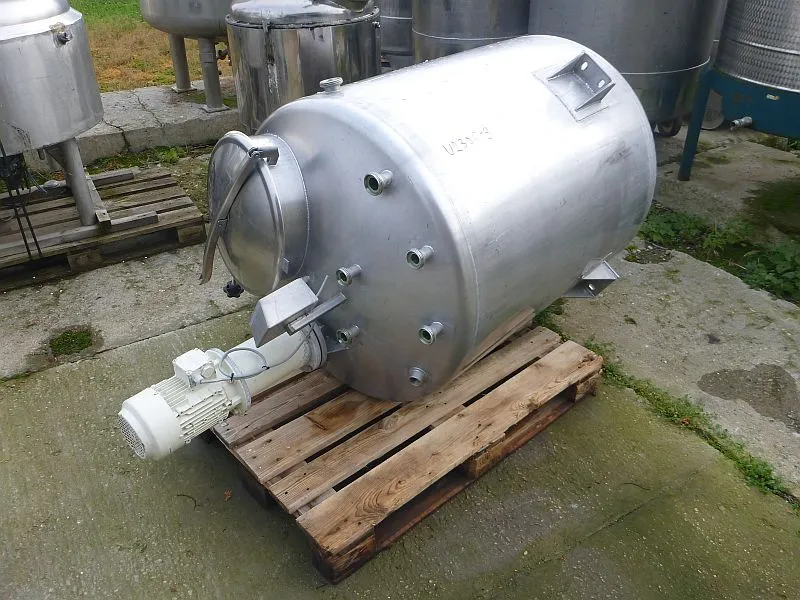

750 L Vertical Stainless Steel Mixing Tank With Toothed Disc Agitator

Overview
Model:
750 LITRE
Stock #:
U2350-3
Description

Used vertical stainless steel mixing tank with volume 750 l. Tank has internal diameter 940 mm x length of straight side 1080 mm. Tank has elipsoidal bottom with central discharge. Top welded, with mounted Veenstra agitator type FRR-150. Agitator has toothed disc with diameter 150 mm and is directly driven by el motor 1.5 kW, 1415 rpm, 230/400 V, 50 hz. Tank has also inspection manway with diameter 420 mm with bolted lid. Tank is mounted on four lugs. Last time used in food industry.

Specifications
Capacity187.5 gal709.8 L
Diameter940 mm3.08'
Height1,080 mm3.54'
Type of stainlessStainless steelStainless steel
Type Of HeadsTop and bottom ellipsoidalTop and bottom ellipsoidal
Vertical/HorizontalVerticalVertical
Legs/Lugs/Skirt4 lugs4 lugs
