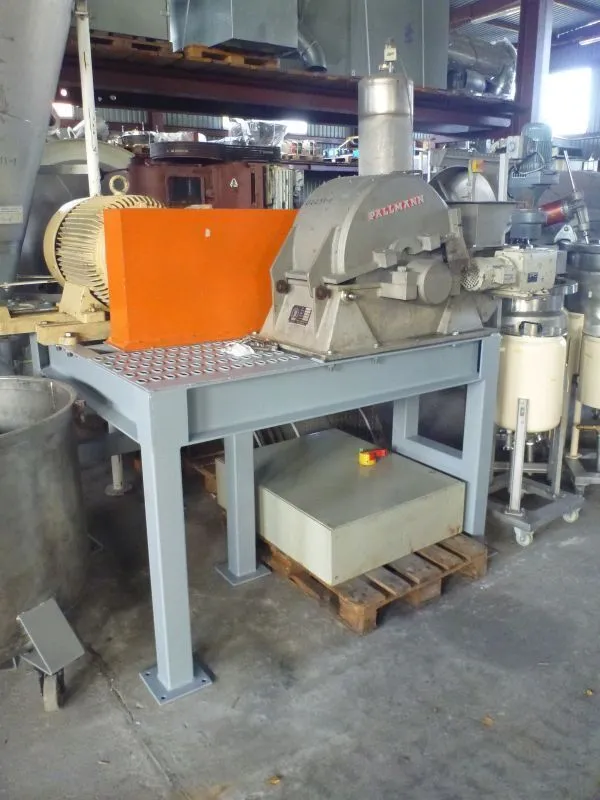

USED PALLMANN PHM 600-350

Used stainless steel contact parts horizontal hammer mill by Pallmann (Germany) type PHM 600-350. Mill has internal dimensions of milling chamber L 600 mm x W 350 mm. Top of milling chamber is manually rised. At the bottom mill has a discharge outlet through the screen. At the top of milling chamber there is installed static knife for grinding of product. Rotor has diameter 500 mm x width 345 mm. On the rotor there are 24 rows with hammers, each row consist of 4 hammers. Total number of hammers is 96. Rotor and hammers are designed in non-corrosive steel. Rotor is belt driven by el. motor 75 kW, 2975 rpm, 380/660 V, 50 hz. Mill has side feeding inlet with dimensions 350 mm x 265 mm. Product is moved into milling chamber through three screws. Screws are driven by el. motor 0.55 kW, 2800 rpm, 220/380V, 50 hz and varispeed gearbox with manual adjustment of outgoing rotation. Mill is equipped with electric cabinet, belt cover and set of screens (6 pcs).
