USED NIKRON B.V. 200 LITRE

Overview
Manufacturer:
NIKRON B.V.
Model:
200 LITRE
Stock #:
U2292-8
Description

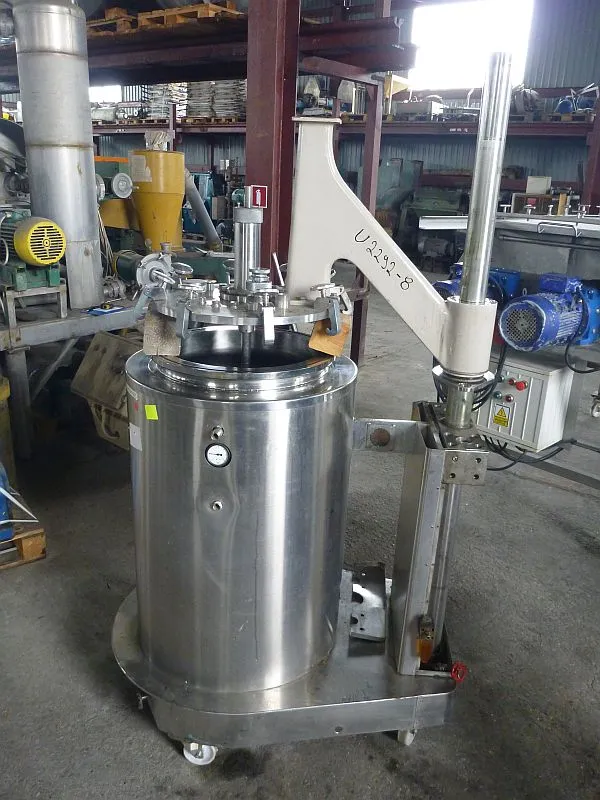

Second hand vertical stainless steel mobile tank by Nikron B.V. (Netherlands) with total volume 200 l. Tank has internal diameter 585 mm x straight side of wall 700 mm. Internal diameter of the top 450 mm. Top is equipped with stainless steel lid, mounted on rising arm with shaft. Lid had been rised pneumatically, but currently accutators are missing. At the lid there is mounted shaft of agitator, but missing a drive. Lid is mounted to the tank on 8 stainless steel clamps. Tank doesn't have bottom outlet. Side walls are insulated and layered with stainless steel. In upper part of side walls there is a heating coil, working pressure up to 2.5 bar. Tank can work on pressure -1 bar. Mounted on stainless steel mobie platform.

Specifications
Capacity52.8 gal200 L
Diameter1.92'585.22 mm
Height2.29'697.99 mm
Type of stainlessStainless SteelStainless Steel
Type Of HeadsStainless SteelStainless Steel
Vertical/HorizontalVerticalVertical
Legs/Lugs/SkirtStainless Steel Mobile PlatformStainless Steel Mobile Platform
Dimensions585x700 (Diameter x Height in mm)585x700 (Diameter x Height in mm)
