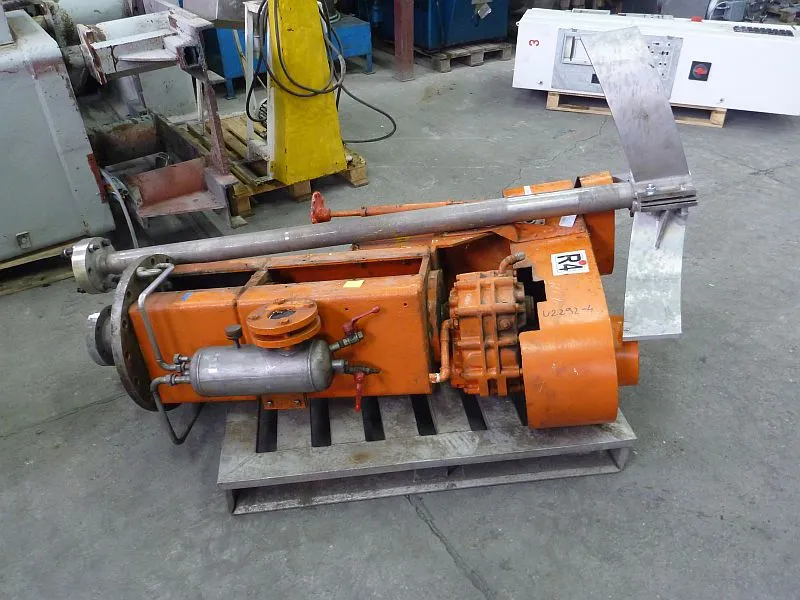

11 kW stainless steel contact parts vertical paddle agitator.Ex design

Used stainless steel contact parts paddle agitator. Shaft has diameter 80 mm x total lenght 219 cm from stainless steel mounting flange. Working length of shaft is 200 cm and shaft is bolted on 6 bolts. Agitator has three paddles bolted to the shaft. Diameter of paddles 95 cm. Agitator is belt driven by el motor 11 kW, 1450 rpm, 220/380 V, 50 hz, in ex design EE x d II BT4. Manual adjustment of working rotation of agitator via speed variator. Mounting flange has diameter 510 mm with 16 holes, each with diameter 20 mm. Holes are located at 470 mm distance from the centre of flange. There is also mechanical sealing of the shaft on the flange.
