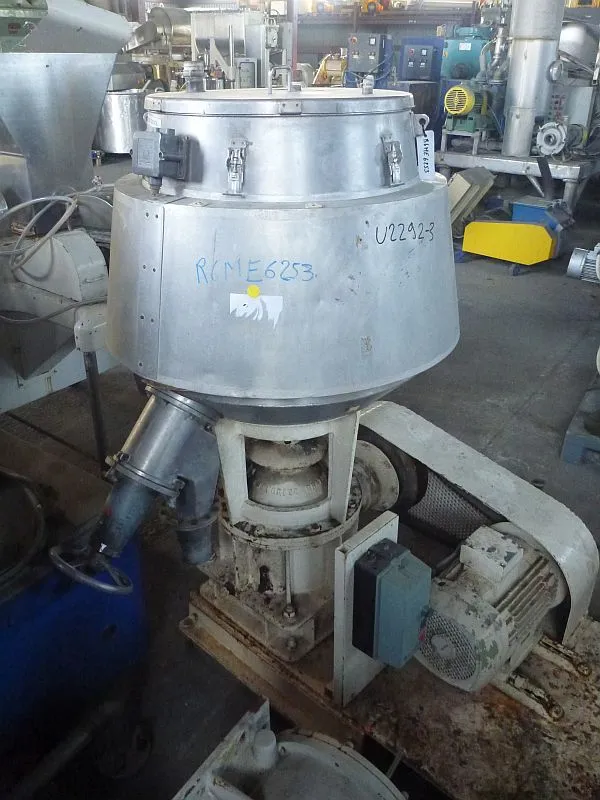

Used universal mixer by Moritz (France) with total volume of mixing chamber 200 l. Working volume about 160 l. Contact parts designed in stainless steel. Mixing chamber has internal diameter 550 mm at the top and 720 mm at the bottom. Depth of the bowl 645 mm. Top has lid mounted on clamps. Bottom discharge outlet with diameter 110 mm. Valve operated manually. Mixer has bottom driven four blade agitator drven by el motor 9 KW, 1440 rpm, 220/380 V, 50 hz, via belt and reducer. Machine is mounted on carbon steel supporting platform. Side walls of mixing chamber are insulated.
| Bowl Volume (Capacity) | 200 L | 52.8 gal |
| Motor Power | 9 kW | 12.1 hp |
| Material of construction | Stainless steel | Stainless steel |
| Jacket | No | No |
| Blade style | Four blade | Four blade |
| Cooler | No | No |
| Jacket (Y/N) | Y/N | Y/N |
| Style Blades | Four blade | Four blade |
| With Cooler | No | No |
| One Piece Base | No | No |
| Dimensions | Internal diameter top 550 mm, bottom 720 mm, Depth 645 mm | Internal diameter top 550 mm, bottom 720 mm, Depth 645 mm |
