720 l vertical mixing tank on mobile wheels

Overview
Stock #:
U2291-1
Description

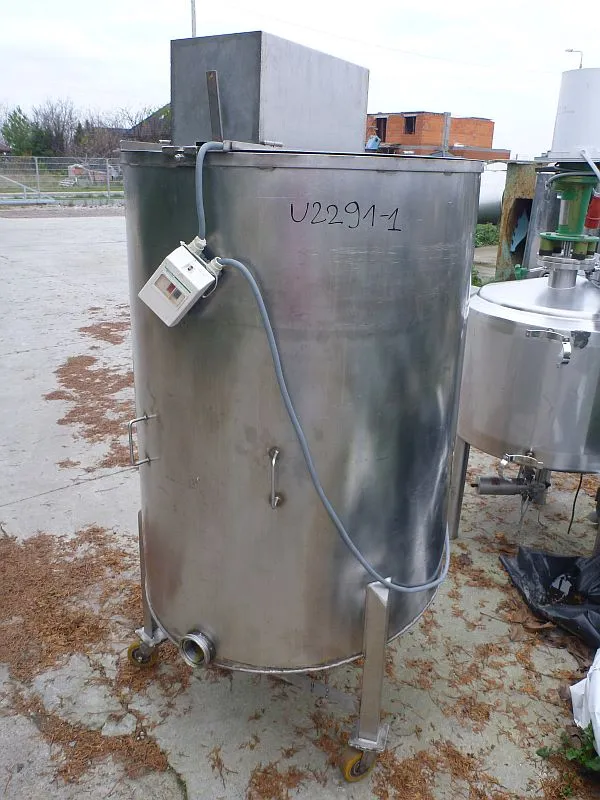

Second hand stainless steel vertical mixing tank with total volume about 720 l. Tank has internal diameter 890 mm. Skew bottom with wall bottom discharge outlet. Straight side of wall - longer 1230 mm, shorter 1090 mm. Tank is equipped with top mounted paddle type agitator, driven by electric motor 0.37 kW, 1380 rpm, 230/400 V, 50 hz and gearbox. Working rotation of agitator up to 168 rpm. Tank is mounted on 3 stainless steel legs equipped with mobile wheels. Shipping dimensions: diameter 100 cm x height 188 cm.

Specifications
Capacity180 gal681.4 L
Diameter890 mm2.92'
Height1,230 mm4.04'
Type of stainlessStainless steelStainless steel
Type Of HeadsTop flat and skew bottomTop flat and skew bottom
Vertical/HorizontalVerticalVertical
Legs/Lugs/Skirt3 legs3 legs
DimensionsDiameter 1000 mm x height 1880 mmDiameter 1000 mm x height 1880 mm
