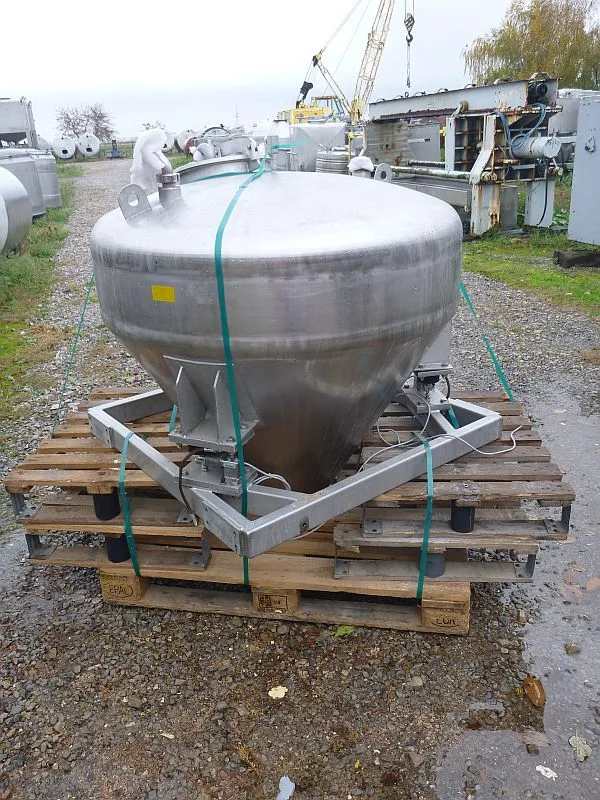

220 l stainless steel tank with insulated walls and conical bottom

Overview
Model:
220 Litre
Stock #:
U2288
Description

Second hand stainless steel tank with total volume 220 l. Tank has internal diameter 820 mm x length of straight side of wall 170 mm. Top elipsoidal and welded to side walls. Equipped with inspection manway with bolted lid with diameter 295 mm. Bottom conical with high of cone 700 mm. Central bottom discharge outlet with diameter 100 mm. All walls are insulated and layered with stainless steel. Tank is mounted on stainless steel frame and three tension cells.

Specifications
Capacity58.1 gal220 L
Diameter2.69'819.91 mm
Height2.85'868.68 mm
Type of stainlessUnknownUnknown
Type Of HeadsTop elipsoidalTop elipsoidal
Vertical/HorizontalVerticalVertical
Legs/Lugs/SkirtStainless steel frame and three tension cellsStainless steel frame and three tension cells
Dimensions820 mm x 170 mm x 700 mm820 mm x 170 mm x 700 mm
