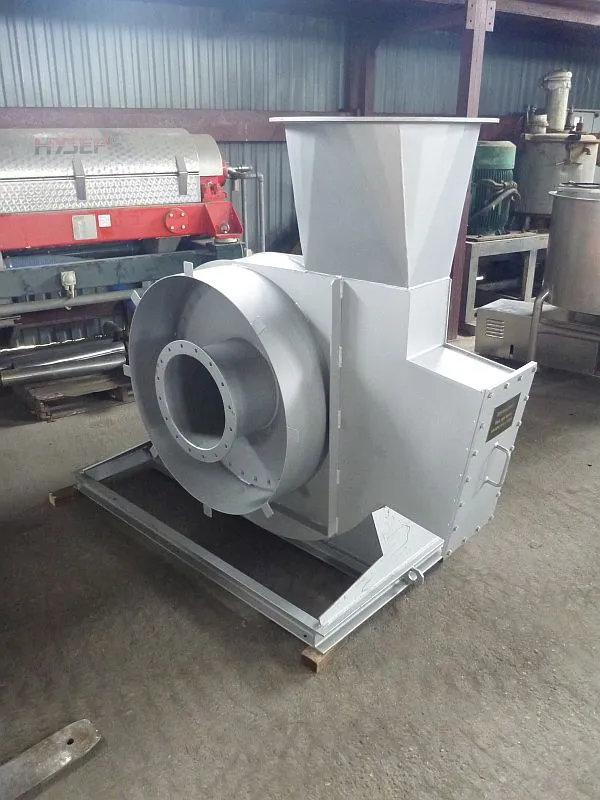

10008 CMH 11 kW Carbon Steel Centrifugal Blower Fan
Description
Unused carbon steel centrifugal blower fan belt driven by el motor 11 kW, 1460 rpm, 400/690 V, 50 hz. Working output up to 2.78 m3/sec (10008 m3/h). Working temperature up to 450°C. Working outlet pressure 1100 Pa. Working rotation of rotor up to 1890 rpm. Inlet has diameter 307 mm. Outlet has diameter 488 mm. Machine is mounted on carbon steel pedestal.
Specifications
| Motor Power | 14.8 hp | 11 kW |
|---|---|---|
| Airflow Capacity | 5,890.7 ft³/min. | 166.8 m³/min. |
| Total Pressure | 0.2 PSI | 0 bar |
