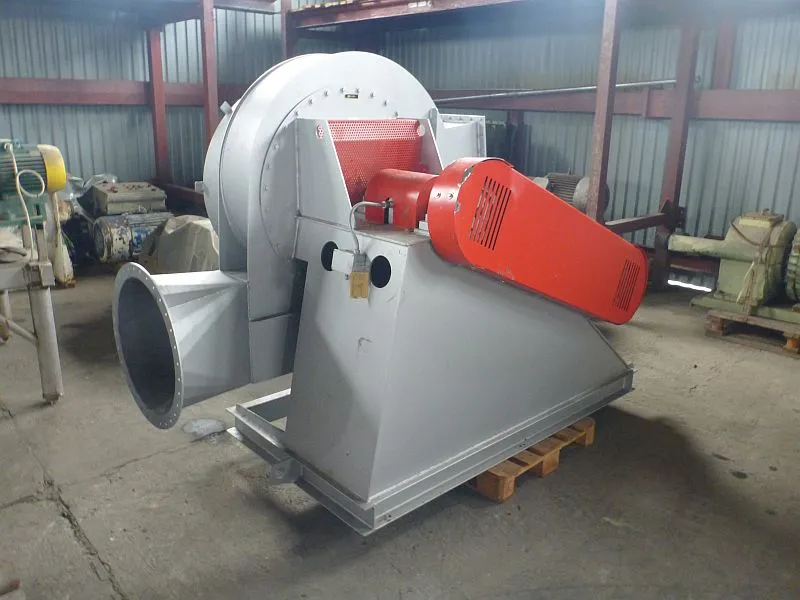

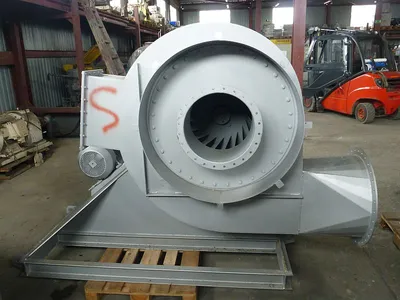

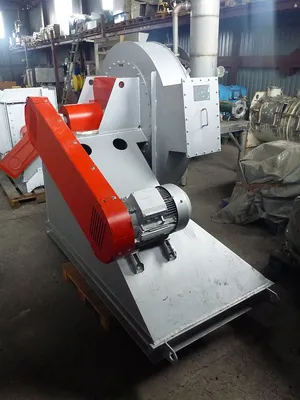

14652 CMH 15 kW Carbon Steel Centrifugal Blower Fan
Description

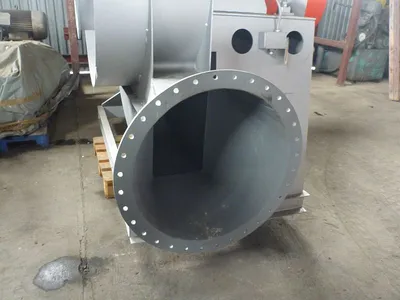

Unused carbon steel centrifugal blower fan driven by electric motor 15 kW, 1460 rpm, 400/630 V, 50 HZ. Working output up to 4.07 M3 / sec. Working temperature up to 450°C. Working outlet pressure 1100 pa. Working rotation of rotor up to 1470 rpm. Inlet has a diameter 395 mm, outlet has a diameter 555 mm.
Specifications
| Motor Power | 20.1 hp | 15 kW |
|---|---|---|
| Airflow Capacity | 8,623 ft³/min. | 244.2 m³/min. |
| Total Pressure | 0 PSI | 0 bar |
