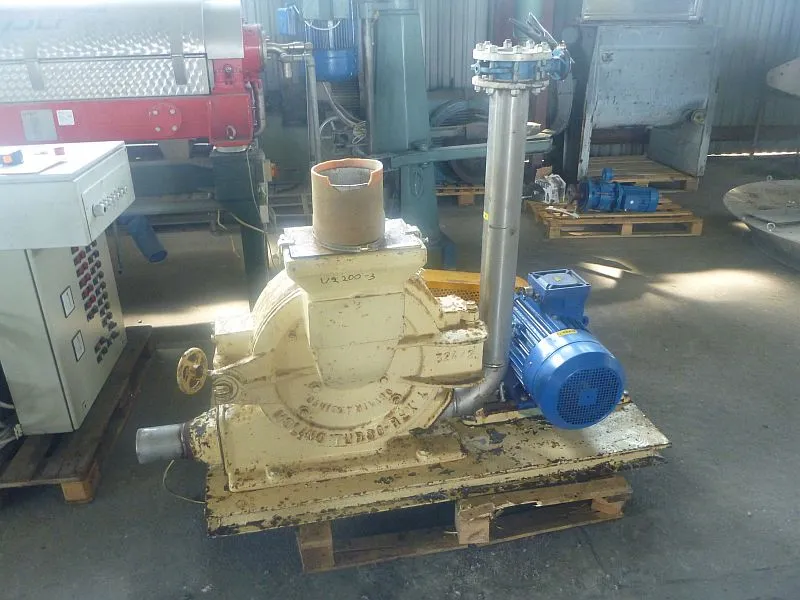

Used universal mill by Dagnoni Milano (Italy). Mill body and grinding discs are made of cast iron. Unit has rotor with diameter 440 mm and Stator with diameter 300 mm. Rotor is belt driven by EL. Motor 15 kW, 2940 rpm, 400V, 50 Hz in EX design (EEx d II BT4). Feeding inlet has diameter 160 mm. Machine is designed to collect the ground product using pneumatic transport. Outlet pipe has a diameter 100 mm. Mill is mounted on integrated skid.
| Horsepower | 15 kW | 15 kW |
| Material Of Construction | Cast iron | Cast iron |
| Type Of Mill | Universal | Universal |
