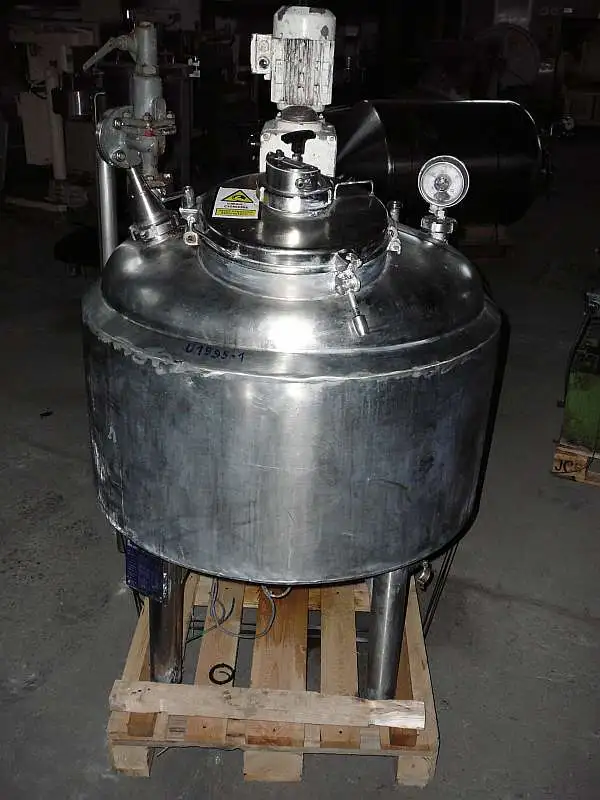

Used stainless steel (316) reactor made by Soleri (France). Capacity 170 liters. Internal working pressure range from -1 to 1.5 bar at temperature up to 140°C. Heating jacket designed in stainless steel has capacity 25 liters and is rated at pressure 3 bar and temperature up to 140°C. Reactor is equipped with a disc agitator driven by electric motor with power 0.75 kW, 1400 rpm and gearbox. Reactor is mounted on 4 legs, has bottom discharge valve. Unit had been manufactured in 1991. Shipping dimensions: diameter 1000 mm and height 1800 mm, weight 330 kg.
| Capacity | 44.9 gal | 170.1 L |
| Type of stainless | 316 | 316 |
| Internal Pressure | 21.8 PSI | 1.5 bar |
| Internal Temperature | 140°F | 60°C |
| Jacket Pressure | 43.5 PSI | 3 bar |
| Diameter | 39.37" | 1,000 mm |
| Legs/Lugs | 4 | 4 |
| Dimensions | 39.37 x 70.87 | 39.37 x 70.87 |
| Weight | 727.525 | 727.525 |
