Used

USED PAUL O. ABBE 5 Cubic Foot

Poland
Since 1932, Perry has been buying and selling high quality used process equipment for the chemical, pharmaceutical, food, plastics and paper industries.
Overview
Dough Mixers

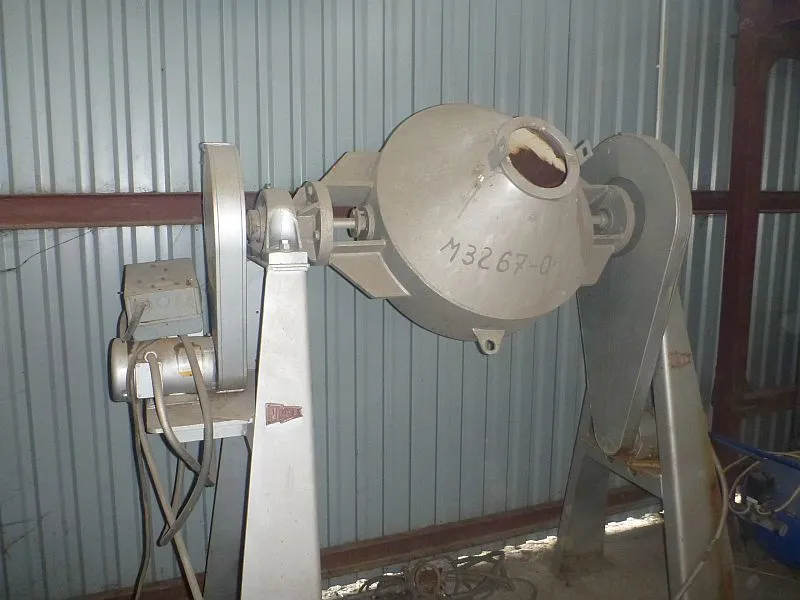

Used double cone blender by Paul O. Abbe (USA) with total volume about 150 liter and working volume 70 liter. Designed in carbon steel. Internal diameter 720 mm x straight side 230 mm. Mixer is driven by electric motor 0.3 kW, intensifier bar is driven by 0.7 kW motor. Feeding inlet 260 mm, discharge outlet 170 mm. Machine is mounted on frame with clearance 1220 mm. Included control. Total height 2210 mm. Dimensions: height 2200 mm x width 1000 mm x depth 800 mm.

Specs
Capacity
5 ft³
141.6 L
Material of construction
CS
CS
Jacket
No
No
Horsepower
0.9 hp
0.7 kW
Type (Double Cone/Twin Shell)
Double Cone
Double Cone
Width
1000
1000
Depth
800
800
Jacket Y/N
N
N
Horsepower Of Mixer
0.3
0.3
Bar Horsepower
0.7
0.7
Dimensions
height 2200 mm x width 1000 mm x depth 800 mm
height 2200 mm x width 1000 mm x depth 800 mm
