USED 2023 DUPLO DC-618

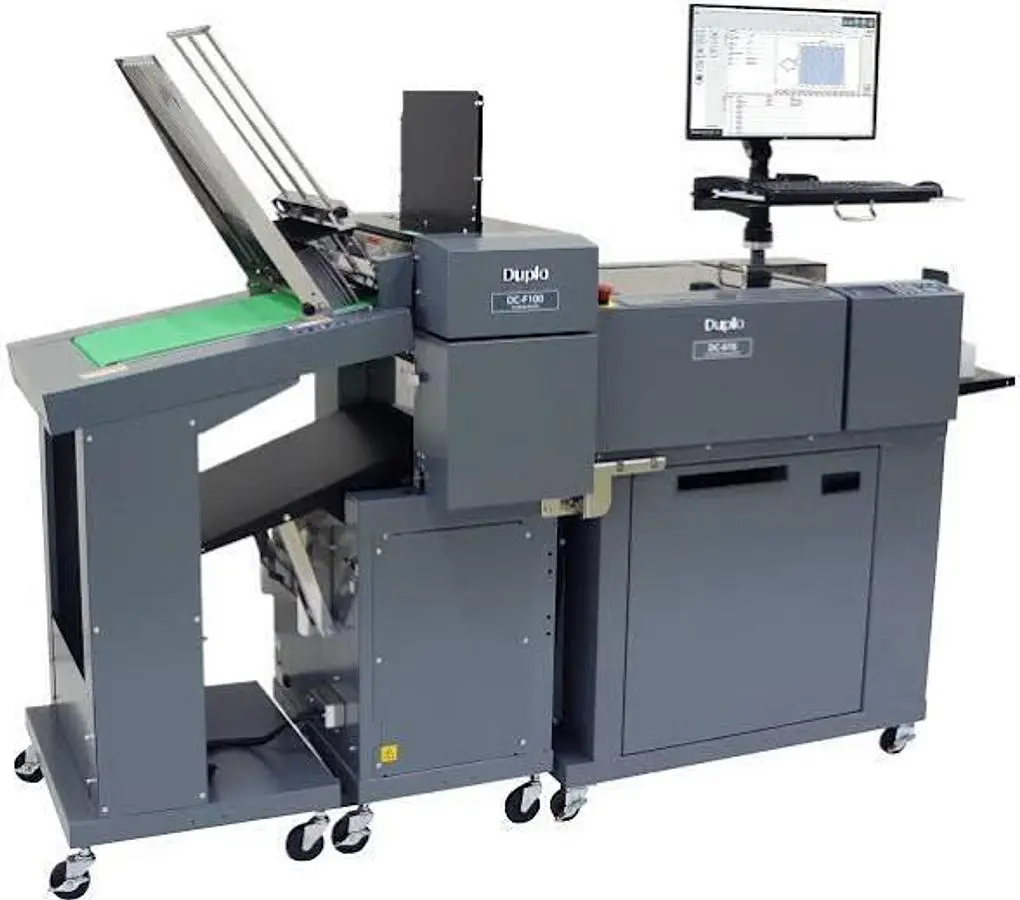

Duplo DC-618 with DC In-Line Folder, 2023
Serial #230854957
Comes with:
Cross Perf

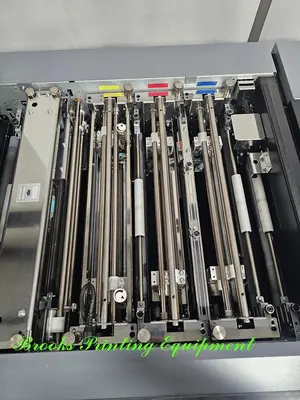

Rotary Tool Module

Speed: Up to 23 sheets per minute (8.5"x 11" 2 cuts,1 crease and CCD scanner off)
Input Paper Size: 8.26” x 8.26” to 13” x 39.3”
Min. Finished Size: 1.89” x 1.97”
Tolerance: ± 0.3 mm business cards; ± 0.2 mm on programmed position
Feeder Capacity: 3.9”
Paper Weight: 110 - 400 gsm
Slits: Up to 6 per sheet
Cuts: Up to 30 per sheet
Creases: Up to 20 per sheet
Memory: 250 jobs using the control panel
Standard Features: Air knife, side air kit, card stacker, fan registration, automatic gutter slit deflectors, crease depth and width adjustment, ultrasonic double feed detection sensor, feed skew adjustment, batch separation, waste box, emergency stop switch, CCD scanner, PC Controller software, PC pole mount, long paper tray, LCD color touchscreen panel

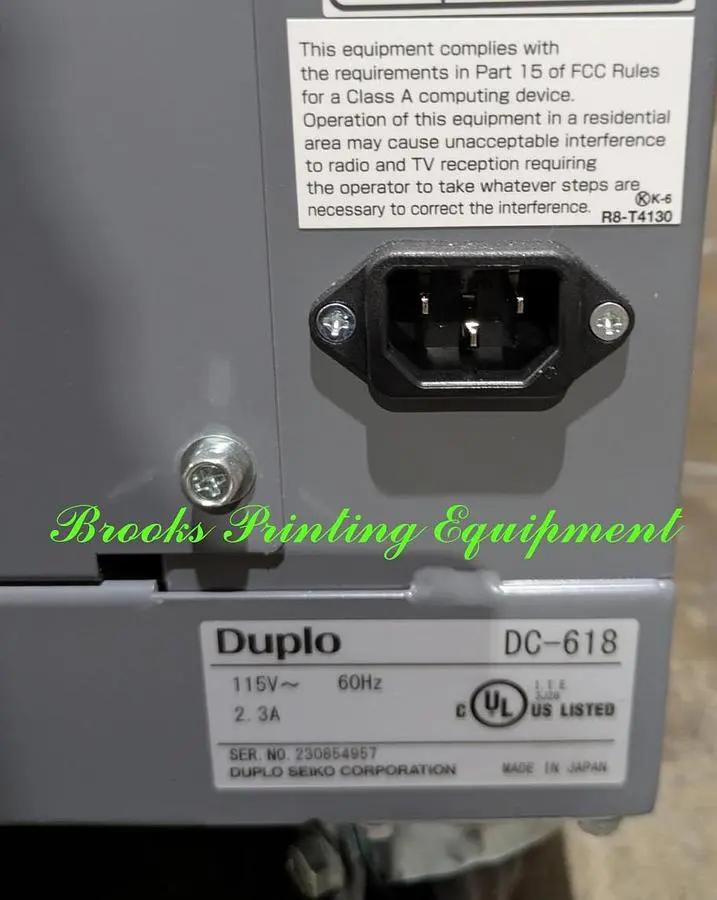

Electrical: 115V: 2.3A, 60Hz
Dimensions: 67"W x 32"D x 44"H
DC In-Line Folder Specifications: Paper Types:Uncoated, Coated, Laminated-Paper+Film must be within specifications listed
In-Line Paper Weight: 110 - 400 gsm (Double Parallel: 110-230 gsm) *Laminated/UV Coated stock: maximum 400 gsm
Input Length: No Fold: 1.96” -39.37” 1-Fold: 5" - 39.37" 2-Fold: 6.69”-39.37” Double Parallel: 8.36”-39.37”
Finished Length: No Fold: 1.96”-39.37” Folded: 3.34”-19.68”
Stacker: Upper Conveyor Stacker: non-fold cards and folded cards; Lower Conveyor Stacker: non-fold cards only; The DC-618 Card Stacker ONLY can be used on the lower stacker of the DC-F100
Upper Stacker Card Length: 1.96”-39.37”
Upper Stacker Capacity: 15.75”
Lower Stacker Capacity: 3.93"
DC-Folder Electrical: 100-240V 50/60Hz, 4.9A
DC Folder Dimensions: 51.37”W x 31.29”D x 64.37”H
DC-Folder Weight: 331 lbs.
Unique id: 20260806DNC230854957
