USED MC 5,700 Litre
Overview
Description

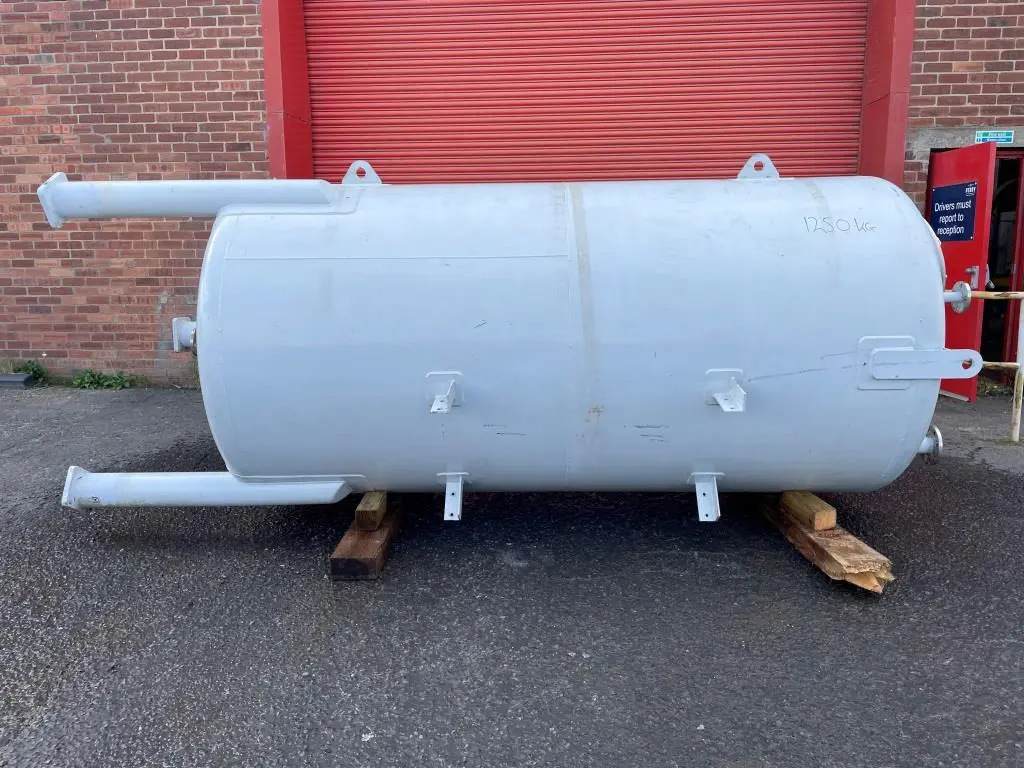

Used MC Integ approximately 5,700 litre capacity 304 stainless steel storage vessel. Unit has welded dished top and bottom heads. Unit measures approximately 1,600mm diameter x 3,000mm straight side. Internal rated 300mBar design pressure at 50 deg.c. Unit is mounted on (3) legs.
Specifications
| Capacity | 1,505 gal | 5,697 L |
|---|---|---|
| Diameter | 5.25' | 1,600.2 mm |
| Height | 9.84' | 2,999.2 mm |
| Type of stainless | 304 | 304 |
| Type Of Heads | welded dished | welded dished |
| Vertical/Horizontal | Vertical | Vertical |
| Legs/Lugs/Skirt | 3 | 3 |
| Dimensions | Diameter 5.25 ft x Height 9.84 ft | Diameter 5.25 ft x Height 9.84 ft |
