USED PSV 100 Litre
Overview
Description

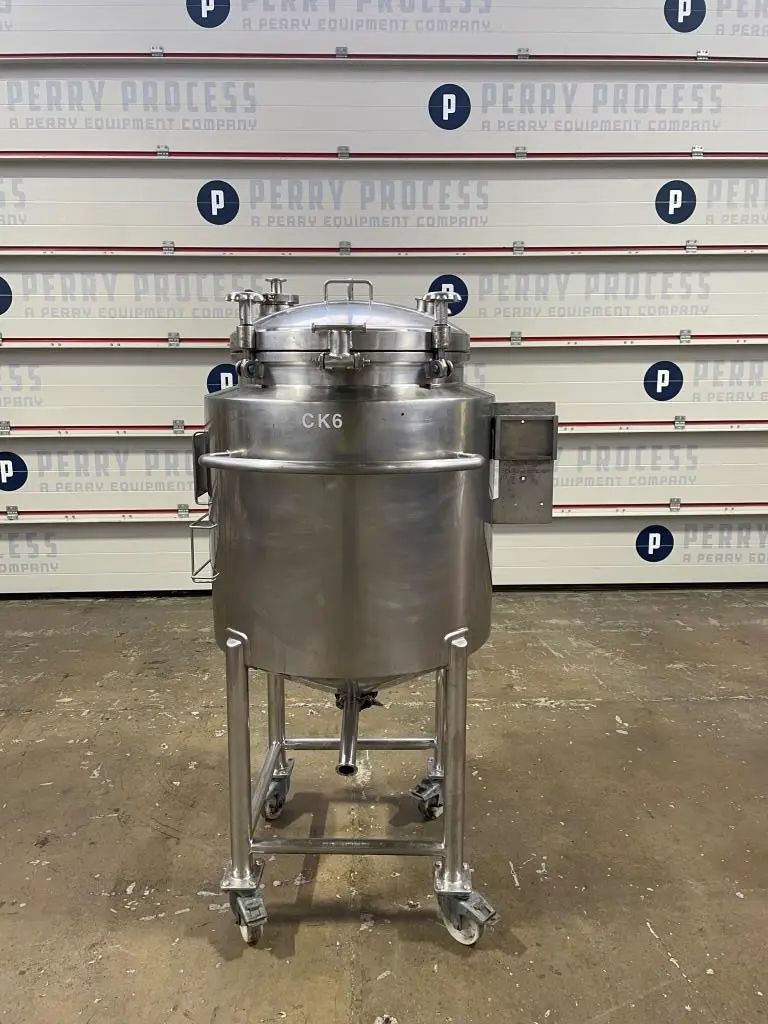

Used PSV Fabrications approximately 100 litre capacity 316L stainless steel jacketed vessel. Unit measures approximately 600mm diameter x 600mm straight side. Has clamped dished top with hinged section and welded conical bottom. Internal rated atmospheric design pressure at 80 deg.c. Unit has stainless steel external jacket rated 4 bar/full vacuum design pressure at 80 deg.c.
Specifications
| Capacity | 26.4 gal | 100 L |
|---|---|---|
| Diameter | 1.97' | 600 mm |
| Height | 1.97' | 600 mm |
| Type of stainless | 316L | 316L |
| Type Of Heads | Dished Top, Conical Bottom | Dished Top, Conical Bottom |
| Vertical/Horizontal | Vertical | Vertical |
| Dimensions | 600mm x 600mm | 600mm x 600mm |
