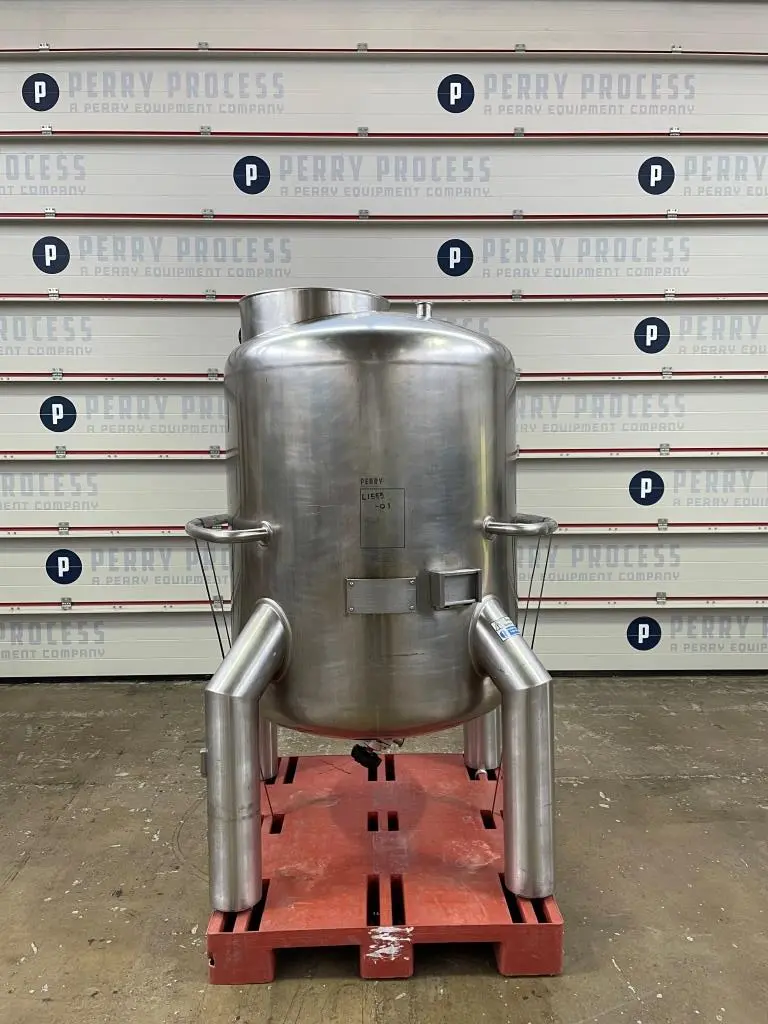

Used ONM Engineering approximately 700 litre 316L stainless steel vertical storage tank. Unit measures approximately 1,000mm straight side x 1,000mm diameter. Unit has welded dished top and bottom heads. Internal rated atmospheric pressure design pressure at ambient temperature. Unit is mounted on (4) stainless steel legs.
| Capacity | 185 gal | 700.3 L |
| Diameter | 3.28' | 999.74 mm |
| Height | 3.28' | 999.74 mm |
| Type of stainless | 316L | 316L |
| Type Of Heads | Welded dished top and bottom heads | Welded dished top and bottom heads |
| Vertical/Horizontal | Vertical | Vertical |
| Legs/Lugs/Skirt | 4 stainless steel legs | 4 stainless steel legs |
| Dimensions | 1000mm x 1000mm | 1000mm x 1000mm |
