Used

USED WINKWORTH RT400

United Kingdom
Since 1932, Perry has been buying and selling high quality used process equipment for the chemical, pharmaceutical, food, plastics and paper industries.
Overview
Dough Mixers

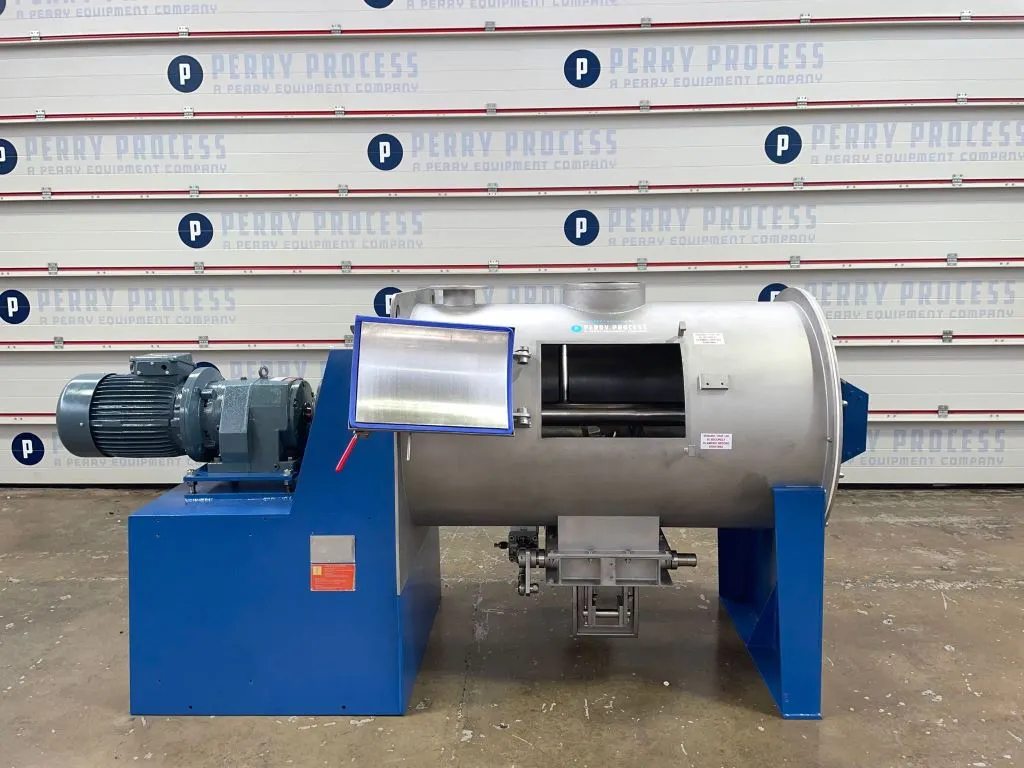

Comprehensively tested and refurbished, used Winkworth model RT400 316 stainless steel high speed ploughshare mixer.

Material: Stainless steel
Capacity: 400 litre (product dependent)
Mixing trough: 1,300mm long x 800mm diameter
Discharge Type: Centre bottom pneumatically operated flap discharge value
Type Of Blades: Ploughshare blades
Motor: 11kw, 380-415 volt, 3/50, 1450-1460rpm motor through Custom Power Transmission gearbox type MO820
Revolutions Per Minute: 99rpm

Also includes: (1) stainless steel side entry chopper driven by 4kw, 380-415volt, 2840-2870rpm, 3/50 motor.

A video of this mixer is available below.

https://youtu.be/EHK1C2PqjPk

Specs
Bowl Volume
105 gal
397.5 L
Motor Power
11 kW
14.8 hp
Material Of Construction
Stainless Steel
Stainless Steel
Choppers (Y/N)
Y
Y
Number Of Choppers (1-10)
1
1
Horsepower Of Choppers
4kW
4kW
RPM Of Choppers
2840 - 2870
2840 - 2870
HP Of Unit
11kW
11kW
Revolutions Per Minute
1450 - 1460
1450 - 1460
Vacuum Internal (Y/N)
N
N
Jacket (Y/N)
N
N
Jacket Pressure
N/A
N/A
Jacket Temperature
N/A
N/A
Dimensions
1,300mm long x 800mm diameter
1,300mm long x 800mm diameter
Weight
N/A
N/A
