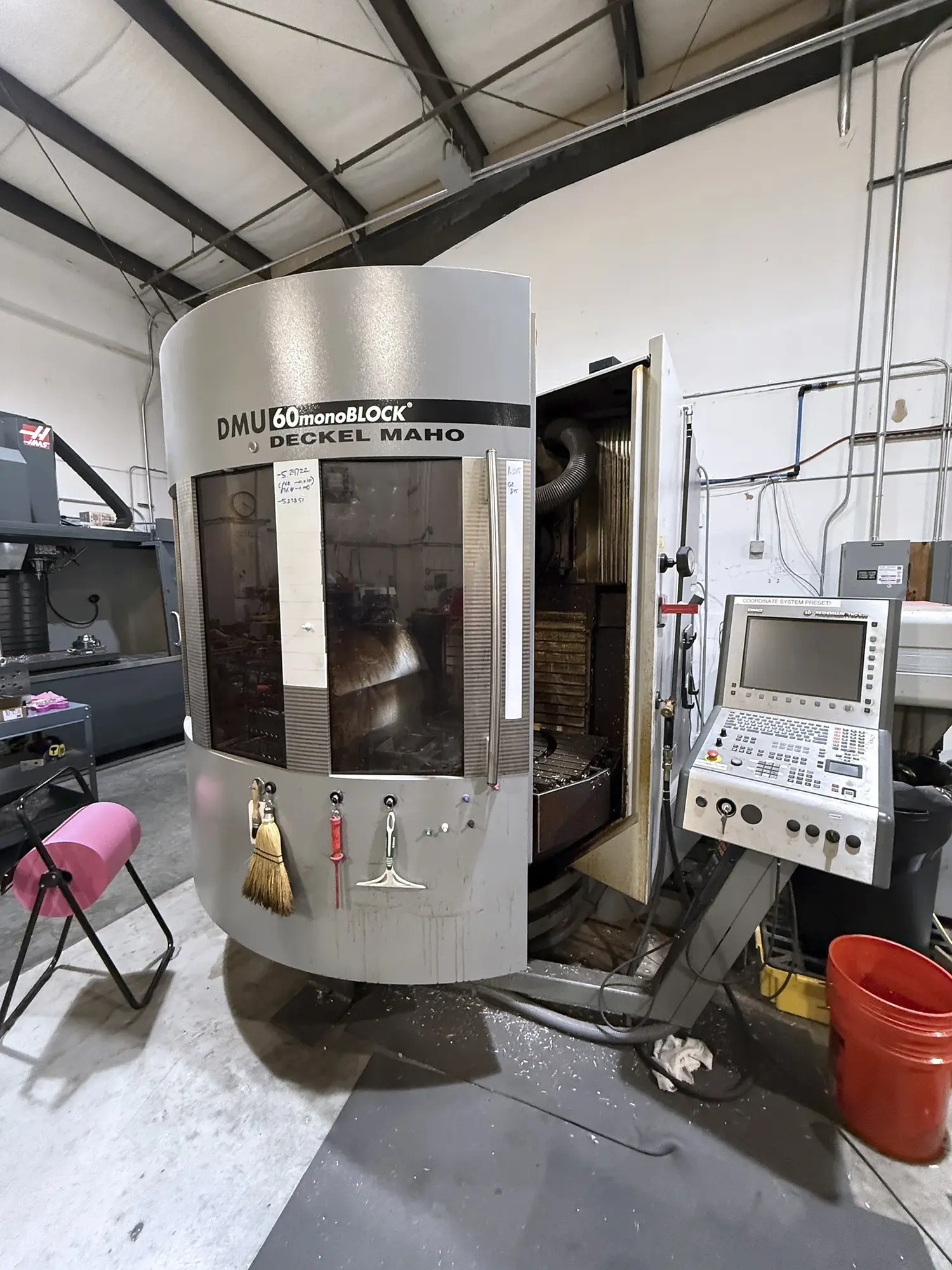

USED 2006 DMG MORI DMU 60

5 Axis| low hours
The DMG Mori DMU60 Vertical Machining Center (2006) with TNC 530 Control is a high-precision 5-axis machining solution designed for complex milling, turning, and gear skiving operations. Ideal for aerospace, medical, automotive, and die & mold applications, it delivers exceptional accuracy, flexibility, and productivity when manufacturing intricate, tight-tolerance components.

Number of Axis: 5-Axis
Tool Changer: 24 ATC
Control: HH iTNC 530
Spindle: 12,000 rpm
Spindle Taper: CAT40
X Axis: 28.74" (730 mm)
Y Axis: 22.05" (560 mm)
B Axis: -120.100/+30.100 degrees
Z axis: 22.05" (560 mm)
C axis: 360 x 0.001 degrees
Traverse path x (longitudinal): 28.74" (730 mm)
Traverse path y (across): 22.05" (560 mm)
Traverse path z (vertical): 22.05" (560 mm)
Type: Brushless AC/Digital
Rapid traverse linear axes x/y/z: 1,181 ipm (30 m/min)
Ballscrews x/y/z: 40 x 20 mm/40 x 20 mm/50 x 20 mm
Application: Vertical
Type of gripper: Pick Up
Number of Tool Stations: 24
Max Tool Weight: 17.6 lbs (8 kg)
Max tool diameter without free side pockets: 3.15" (80 mm)
Max tool diameter with free side pockets: 5.12" (130 mm)
Max Tool Length: 12.4" (315 mm)
Input resolution: 0.001 mm
Table clamping surface: 23.62" (600 mm) Diameter
Maximum load table center: 1,102 lbs (500 kg)
Rigid table clamping surface: 39.4" x 23.6" (1,000 mm x 600 mm)
Rigid table maximum load: 1,543 lbs (700 kg)
Type of main drive: AC
Drive power 100% dc: 25.5 HP (19 kW)
Drive power 40% dc: 37.5 HP (28 kW)
Max spindle torque 100% dc: 60.5 Ft/Lb. (82 Nm)
Max spindle torque 40% dc: 89.2 Ft/Lb. (121 Nm)
Speed Range: 20-12,000 RPM
Acceleration: 2.2 Seconds
Number of gear steps: None
Spindle bearing diameter front/rear: 3.15"/2.36" (80/60 mm)

It is cat40 (they call it sk40 but they're the same thing)
12
000RPM spindle
24 pocket tool changer
Heidenhain iTNC530 - full on 5 axis machine
Has work probe (renishaw that mounts as tool - probing to set up work coordinate systems
Has a blum laser tool-setter
which does not work right now
Chip Conveyor Machine has the 3d quickset cycle
and the little tool kit that comes with it
Calibration tool for the tool setter included
extra axis motor As the "odometer" shows
2276 power on hours
765 cutting hours
It's a 400 volt machine
which I run from a transformer that lifts 208v to 400v. Transformer included. If somebody has some other power (480 or ???) I don't know if the transformer can be reconfigured or not
There's an older handwheel pendant as well
Lots of paper manual
