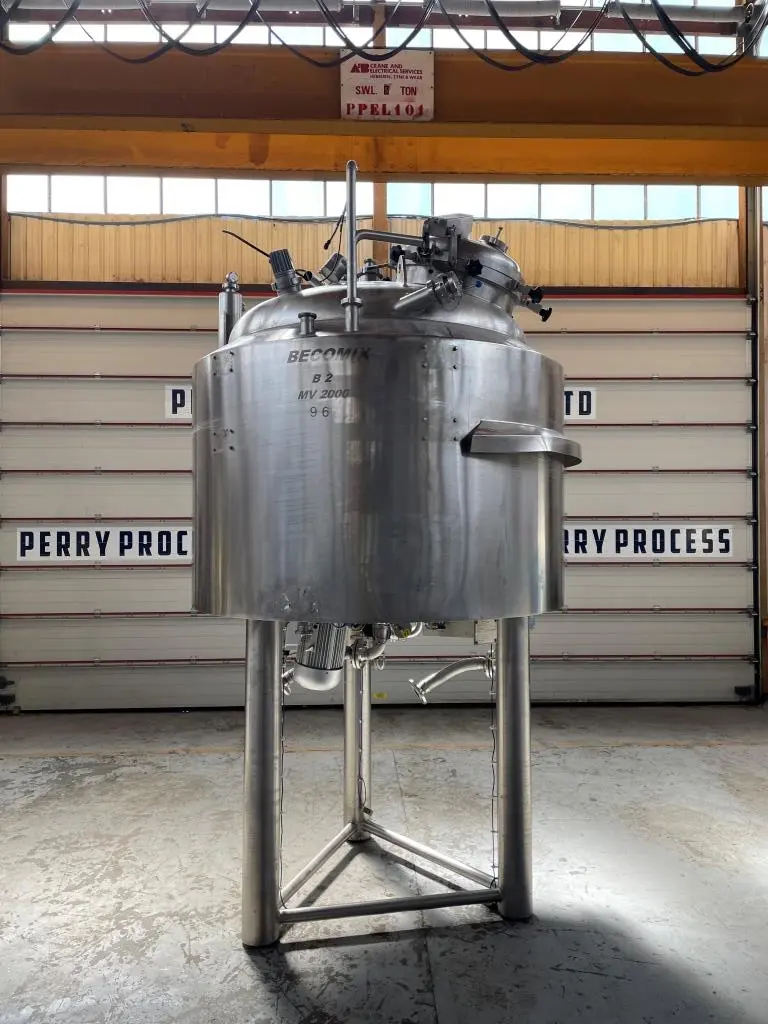

Used Becomix type MV-2000 stainless steel premix vacuum processing vessel. Approximately 2,000 litre capacity. Has welded dished top and welded dished bottom heads. Internal rated 2 bar / full vacuum design pressure at 134 deg.c. External jacket rated 4 bar design pressure at 152 deg.c. Unit has bottom entry agitator driven by a 5.5kW 980 RPM 3/415V 50Hz electric motor. Unit is mounted on stainless steel legs.
Click on the link below to see a video of the machine running.
| Capacity | 528 gal | 1,998.7 L |
| Type of stainless | stainless steel | stainless steel |
| Internal Pressure | 29 PSI | 2 bar |
| Internal Temperature | 273°F | 133.9°C |
| Jacket Pressure | 58 PSI | 4 bar |
| Type Of Heads | welded dished top and welded dished bottom | welded dished top and welded dished bottom |
| Legs/Lugs | Yes | Yes |
