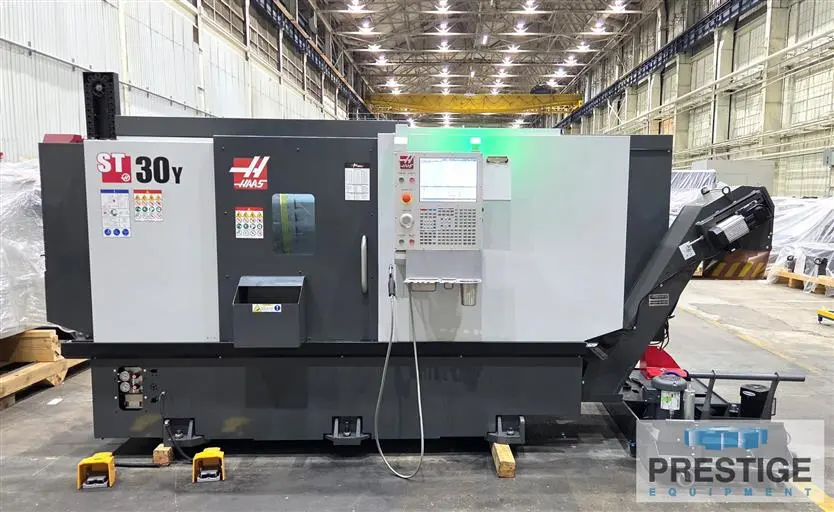

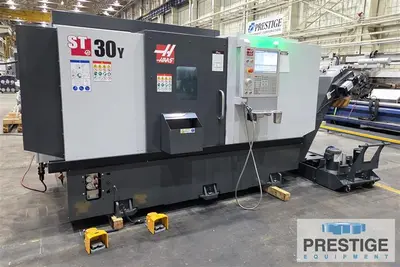

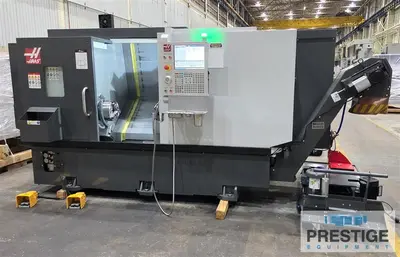

USED 2021 HAAS ST-30Y

CAPACITIES:
Chuck Size: 10"
Max Part Swing: 21"
Max Cutting Dia. With BMT65 Turret: 13.75"
Max Cutting Length: 32.5"
Bar Capacity: 3.0"
Max. Distance Between Centers: 32.5"

TRAVELS:
X-Axis: 9.40"
Y-Axis: ± 2.0"
Z-Axis: 32.50"

FEEDRATES:
Rapids, X/Y Axes: 472 IPM
Rapids, Z-Axis: 945 IPM
Max Thrust, X-Axis: 4100 LBF
Max Thrust, Y-Axis: 2300 LBF
Max Thrust, Z-Axis: 5100 LBF

SPINDLE:
Spindle Nose: A2-6
Spindle Motor: 30 HP
Spindle Speed: 3400 RPM
Max Torque: 300 ft-lbf @ 500 RPM
Spindle Bore: 3.5"

C-AXIS:
Max Rating: 5 HP
Max Speed: 60 RPM
Positioning: (±)0.01 Degree
Brake Diameter: 13.9"
Brake Holding Torque: 250 FT-LBF
Control Type: Interpolated Motion & Positioning

TURRET:
Turret Type: 12-Station BTM-65
Boring Bar Rear Clearance: 4.0"
Live Tooling Max. Speed: 4000 RPM
Tooling: BTM 65

TOOLING INCLUDED:
1- Radial Live Tool Holder:
1- Axial Live Tool Holder:
1- Axial Live Tool Holder:
Static Tool Holder:

DIMS & WEIGHT:
Domestic Pallet: 171" x 90" x 98"
Approx. Weight: 11,340 Lbs.

Equipped With:

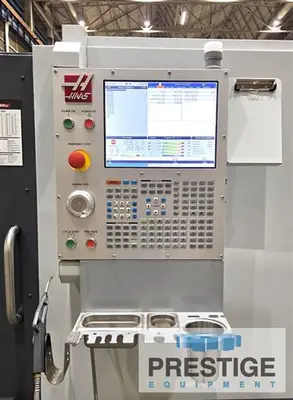

Haas NextGen CNC Control with WIFI Connection

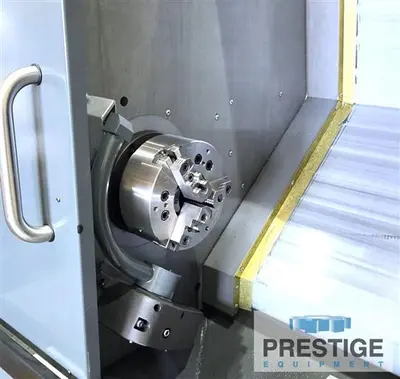

10” 3 Jaw Chuck
12-Station BMT65 Turret with 6000 RPM Live Tooling Speed Upgrade
Tool Eye
Parts Catcher

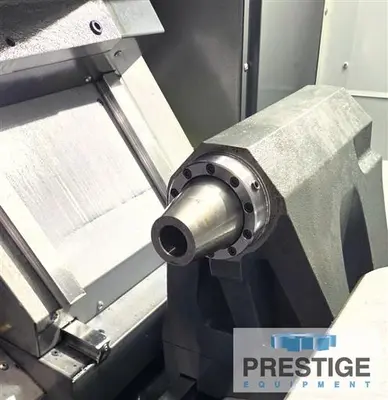

Programmable Tailstock

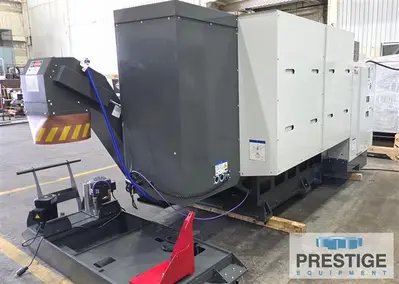

Belt Type Chip Conveyor
Chip Tray Filter Kit
300 PSI High Pressure Coolant
Early Power Failure Detection Module
User Definable Macros
Rigid Tapping
Spindle Orientation
Visual Programming System
Coolant System
High Intensity Lighting

NOTE:

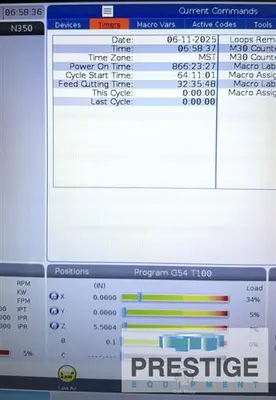

Low Hours!
Inspect Under Power in Our Philadelphia, PA Warehouse

Features:
Haas NextGen CNC Control
X,Y,Z,C-Axes & Live Milling
10" 3-Jaw Chuck
12-Station BMT65 Turret
6000 RPM Live Tooling
Tool Eye
Part Catcher
Programmable Tailstock
High Pressure Coolant
Chip Conveyor
