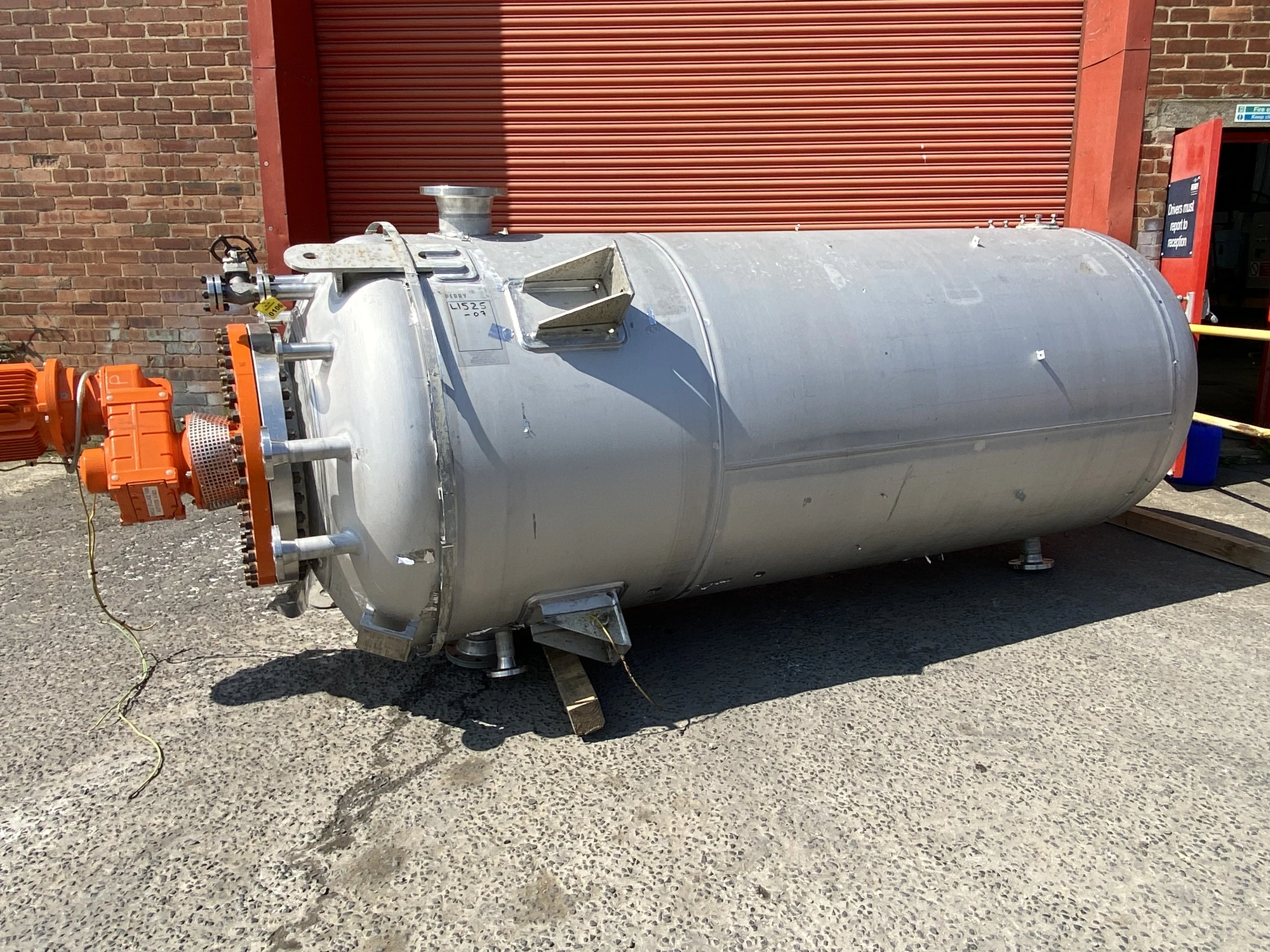

USED FIB INDUSTRIELE BEDRIJUEN 5,000 Litre

Overview
Stock #:
L1525-07
Description

Used FIB Industriele Bedrijuen BV approximately 5,000 litre stainless steel vertical mixing vessel. Unit has welded dished top and bottom heads. Unit measures approximately 1,300mm diameter x 2,850mm straight side. Internal rated 1 bar/full vacuum design pressure at 120 deg.c. Unit includes top entry stainless steel 2-tier, 4-blade agitator with Jongia drive, 5.5kw/6.33kw, 50/60hz motor through Siemens gearbox rated 15.31/1 ratio. Unit is mounted on (2) stainless steel side supports.

Specifications
Capacity1,320.9 gal5,000 L
Diameter4.27'1,300 mm
Height9.35'2,850.1 mm
Type of stainlessNot specifiedNot specified
Type Of Headswelded dished top and bottomwelded dished top and bottom
Vertical/Horizontalverticalvertical
Legs/Lugs/Skirt(2) stainless steel side supports(2) stainless steel side supports
Dimensions1,300mm diameter x 2,850mm straight side1,300mm diameter x 2,850mm straight side
Weightunknownunknown
