USED PFAUDLER BE5000

United Kingdom
Since 1932, Perry has been buying and selling high quality used process equipment for the chemical, pharmaceutical, food, plastics and paper industries.
Overview
Reactors

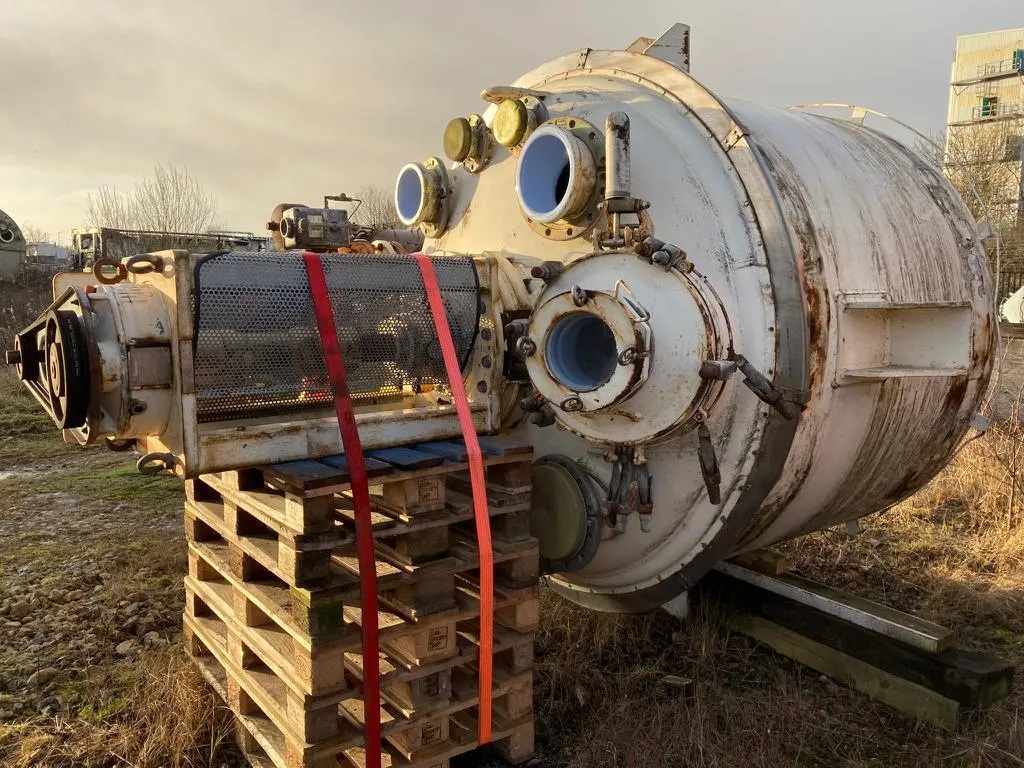

Used Pfaudler BE5000 vertical glass lined reactor. Approximately 5,000 litre capacity. Internal rated 6.6 bar/full vacuum design pressure at -29 to 200 deg.c. External mild steel jacket rated 6.6 bar/full vacuum design pressure at -29 to 200 deg. Unit has welded dished top and bottom heads. Includes top entry 4-blade CBR Turbine type agitator driven by a 10.5 kw 415 volt 292-1460 rpm 3/50 motor. Unit is mounted on lugs.

Specs
Capacity
1,320.9 gal
5,000 L
Internal Pressure
95.7 PSI
6.6 bar
Internal Temperature
392°F
200°C
Jacket Pressure
95.7 PSI
6.6 bar
Jacket Temperature
392°F
200°C
Legs/Lugs
Lugs
Lugs
