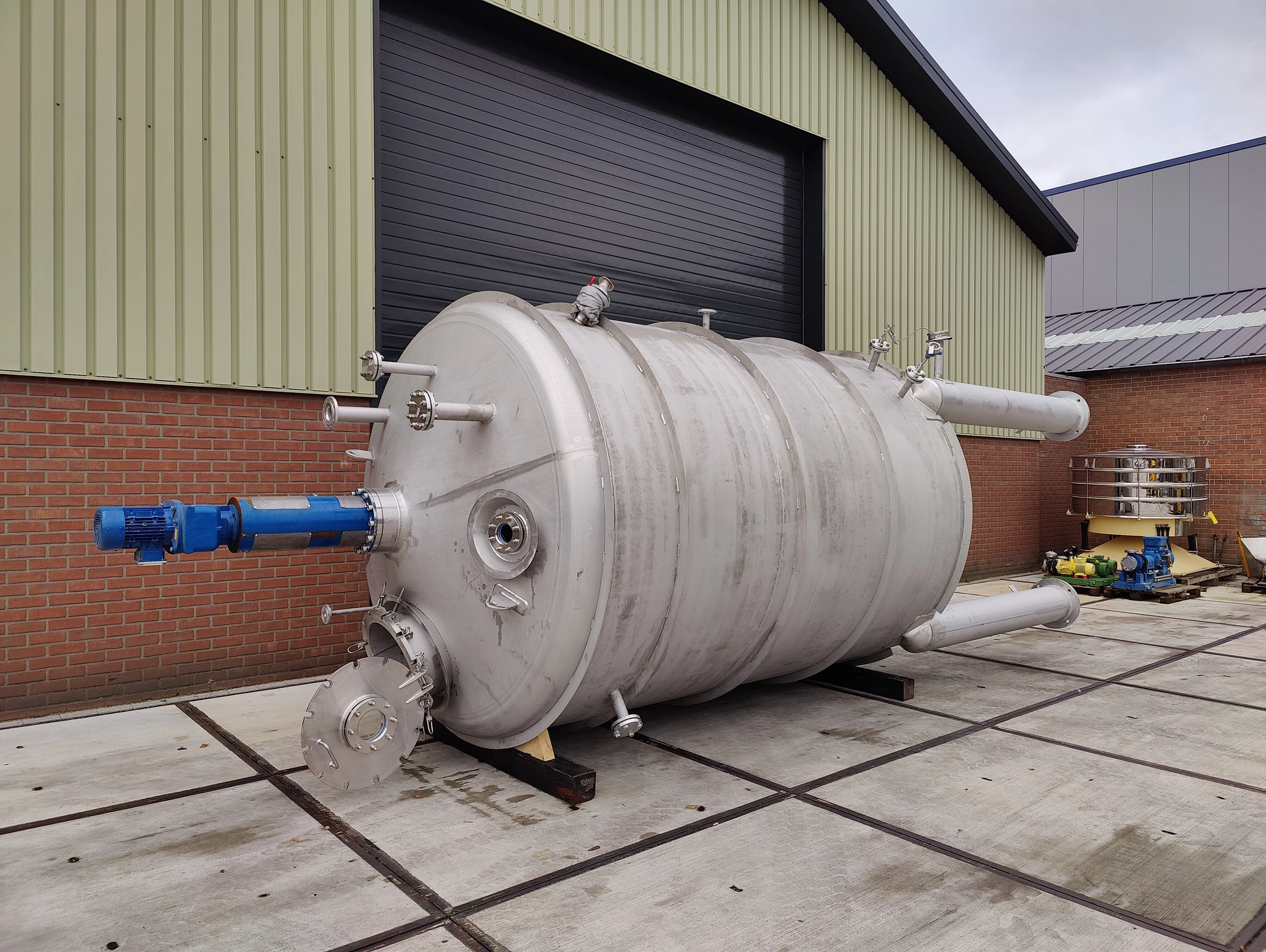

Used 3V Cogiem approximately 18,600 litre 304L stainless steel vertical reactor vessel. Unit measures approximately 2,500mm diameter x 3,340mm straight side. Unit has welded dished top and welded conical bottom heads. Internal rated 0.49 bar design pressure at 130 deg.c. Has internal 304L stainless steel heating coil rated 5 bar design pressure at 100 deg.c. Unit includes top entry off-set stainless steel 2-tier, 3-blade pitched paddle agitator driven by 3kw motor. Unit is mounted on 4 stainless steel legs.
| Capacity | 18,600 L | 4,913.6 gal |
| Type of stainless | 304L | 304L |
| Internal Pressure | 0.5 bar | 7.1 PSI |
| Internal Temperature | 130°C | 266°F |
| Jacket Pressure | 5 bar | 72.5 PSI |
| Diameter | 2,500 mm | 98.425" |
| Straight Side | 3,340 mm | 131.5" |
| Type Of Heads | Welded Dished Top and Welded Conical Bottom | Welded Dished Top and Welded Conical Bottom |
| Legs/Lugs | 4 | 4 |
| Dimensions | 2500mm x 3340mm | 2500mm x 3340mm |
