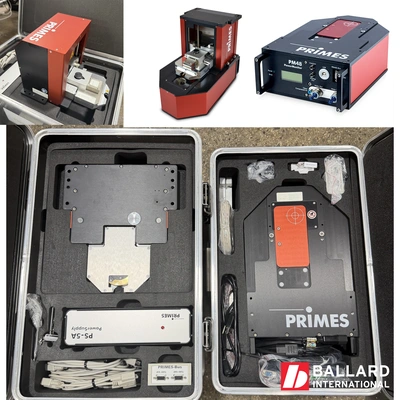

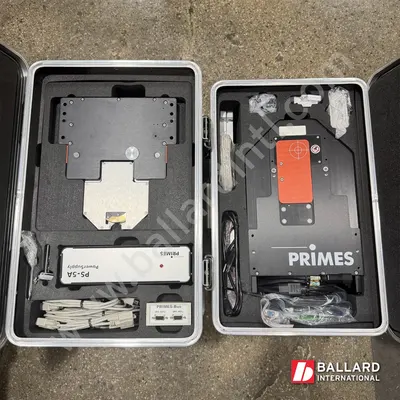

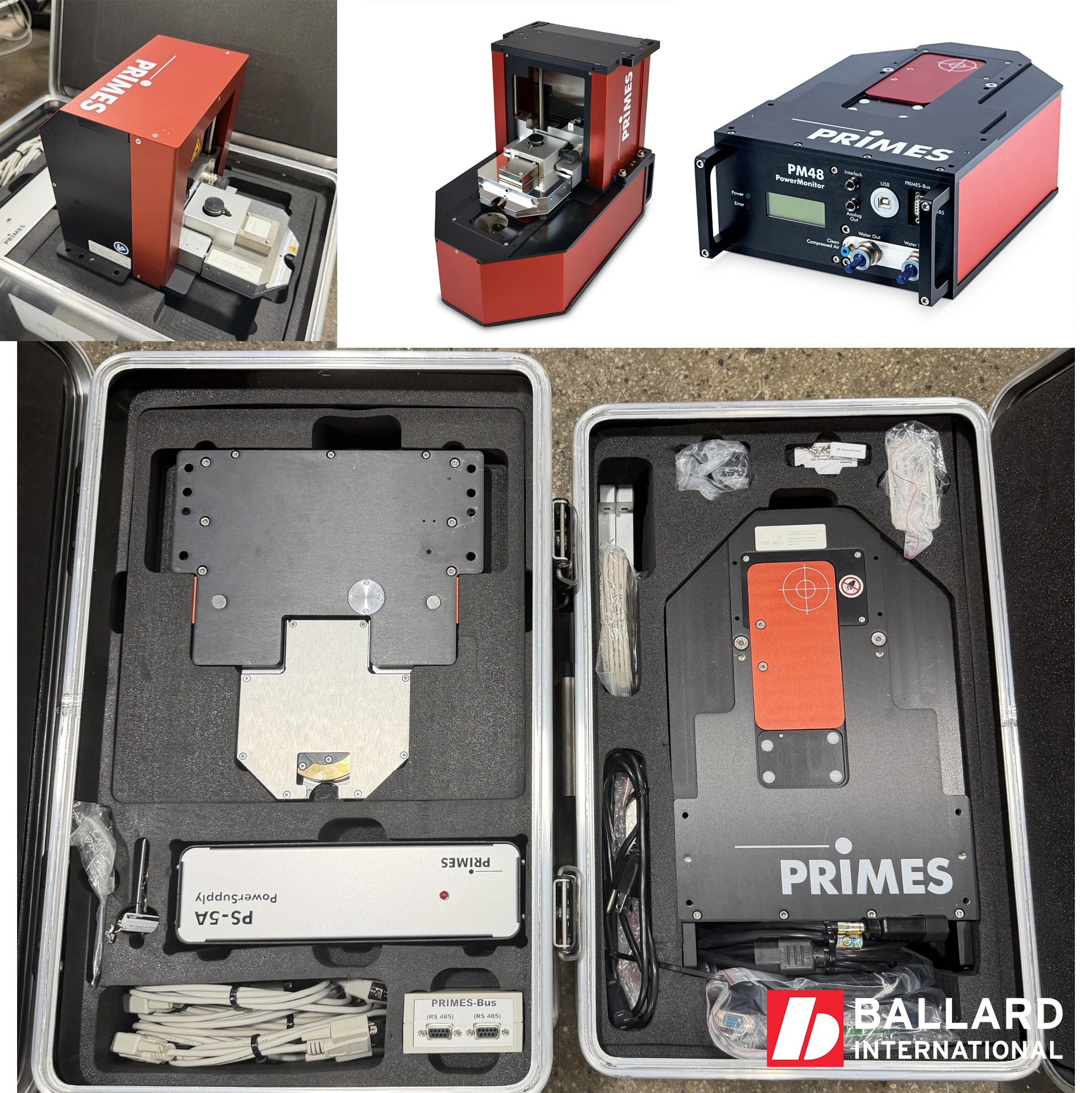

PRIMES PowerMonitor PM48 w/ FocusMonitor FM120 Laser Analysis & Measuring System

BRAND NEW – Never Used or Installed

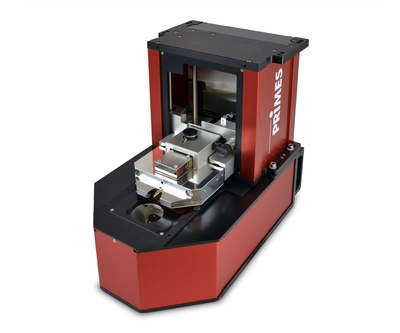

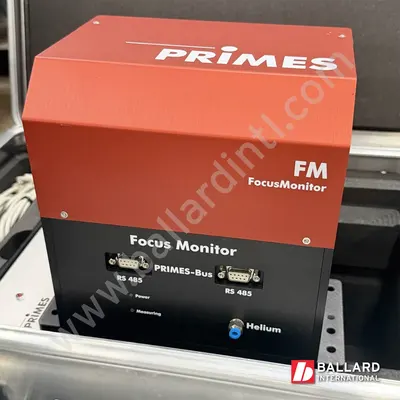

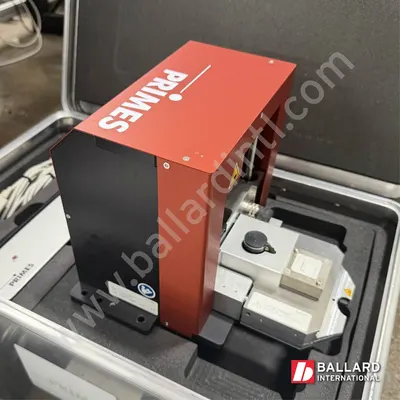

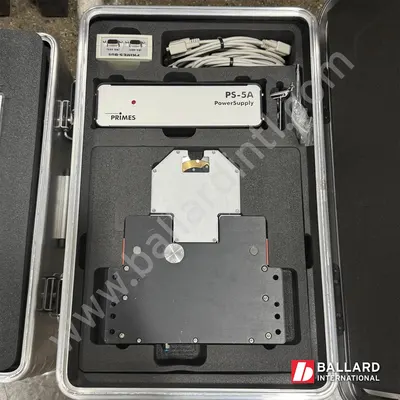

PRIMES FM120 HP (High Power) Focus Monitor:
Measures the spatial power density distribution in the focus range of the processing optics. Calculates the beam radius, the focus position in the space as well as the beam propagation ratio K or – respectively – beam propagation factor M².
Includes: PS-5A Power Supply, RS 485 / RS 232 to PC Interface,14mm Offset Adjustment Tool, USB w/ LaserDiagnosticsSoftware LDS, PowerMonitorSoftware PMS, & Manuals, Connection and Power Cables
Measurement Parameters: Power Range: 30-50,000 W | Wavelength Range: 0.4-12 µm | Beam Dimensions typ.: 150-3000 µm (up to 5000 µm optional) | Option – Small Focus Dimensions: 100-150µm
Determined Parameters: Focus Position x, y, z: yes | Focus Radius x, y: yes | Beam Propagation Factor K: yes | Beam Propagation Ratio M²: yes | Measured Rayleigh Length, typ: 28 mm | Raw Beam Diameter with Focusing Element: yes | Beam Parameter Product: yes | Divergence Angle: yes | Peak Intensities in Combination with PowerMonitor: CO² laser: 30 MW/cm² – NIR laser: 10 MW/cm²
Power Density Distribution: 2D, 3D | Evaluation 86 % (1/e’): yes | Evaluation 2nd Moment: yes
Automatic Measuring Range > 4 Rayleigh Lengths: optional | Measurement Time/Low res. Plane (32 x 32 pixel): 3 s
Measurement time/high res. plane (256 x 256 pixel): 30 s
Function of the Measuring System:
Working Range x-y: 8 x 8 mm / 12 x 12 mm (12 x 24 mm optional) | Working Range z: 120 mm | Measurement Window Sizes: 0.08 x 0.08 – 12 x 24 mm (resolution 64 pixel) | Resolution: 32 x 32 – 256 x 256 pixel | Rotation Speed: 1875, 3750 rpm (7500 rpm optional)
Line Focus: yes | Linescan: optional
Supply Data:
Power Supply: 24 V DC ± 5 %, max. 5 A | Protective Gas: typ. 0.5 bar
Communication:
Interfaces: RS 485, RS 232 with USB, serial | Trigger-Delay Port: optional
Environmental Conditions:
Operating Temperature Range: +10°C up to +40°C | Permissible Relative Humidity (non-condensing): 10 – 80 %

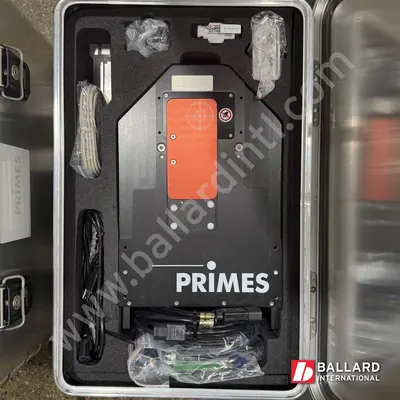

PRIMES PM48 Power Monitor:
Determines the laser power of beams in the multikilowatt range. Controls the laser power of CO² solid-state and fiber lasers as well as high power diode lasers. Measures both unfocused and divergent beams.
Includes: RS 485 / RS 232 to PC Interface, USB w/ LaserDiagnosticsSoftware LDS, PowerMonitorSoftware PMS, & Manuals,
x4 Mount Type B (overall height 208mm) for Installing FM120, Connection and Power Cables
Measurement Parameters:
Power Range: 300W-8kW | Irradiation Time: continuous | Wavelength Range: 800 – 1100 nm, 10600 nm | Entrance Aperture: 48mm
Max. Power Density: 15 kW /cm²  |  Accuracy: ± 2 %  |  Reproducibility: ± 1 %  |  Time Constant: 15 s up to 99 % of final value
Supply Data:
Power Supply: 24 V DC ± 5 %, max. 0.5 A | Compressed Air: for shutter mechanism | Min. Air Pressure: 2 bar | Max. Air Pressure: 3 bar
Cooling Water Flow Rate: > 5 l / min | Cooling Water Stability: < 1 K / min | Maximum Water Inlet Pressure: 6.5 bar
Communication:
Interfaces: serial/USB
Environmental Conditions:
Operating Temperature Range: +10°C up to +40°C | Permissible Relative Humidity (non-condensing): 10 – 80 %
LaserDiagnosisSoftware v2.7 or above allows parallel operation of the FocusMonitor with the PowerMonitor for precise power reading and analysis of beam shape.
