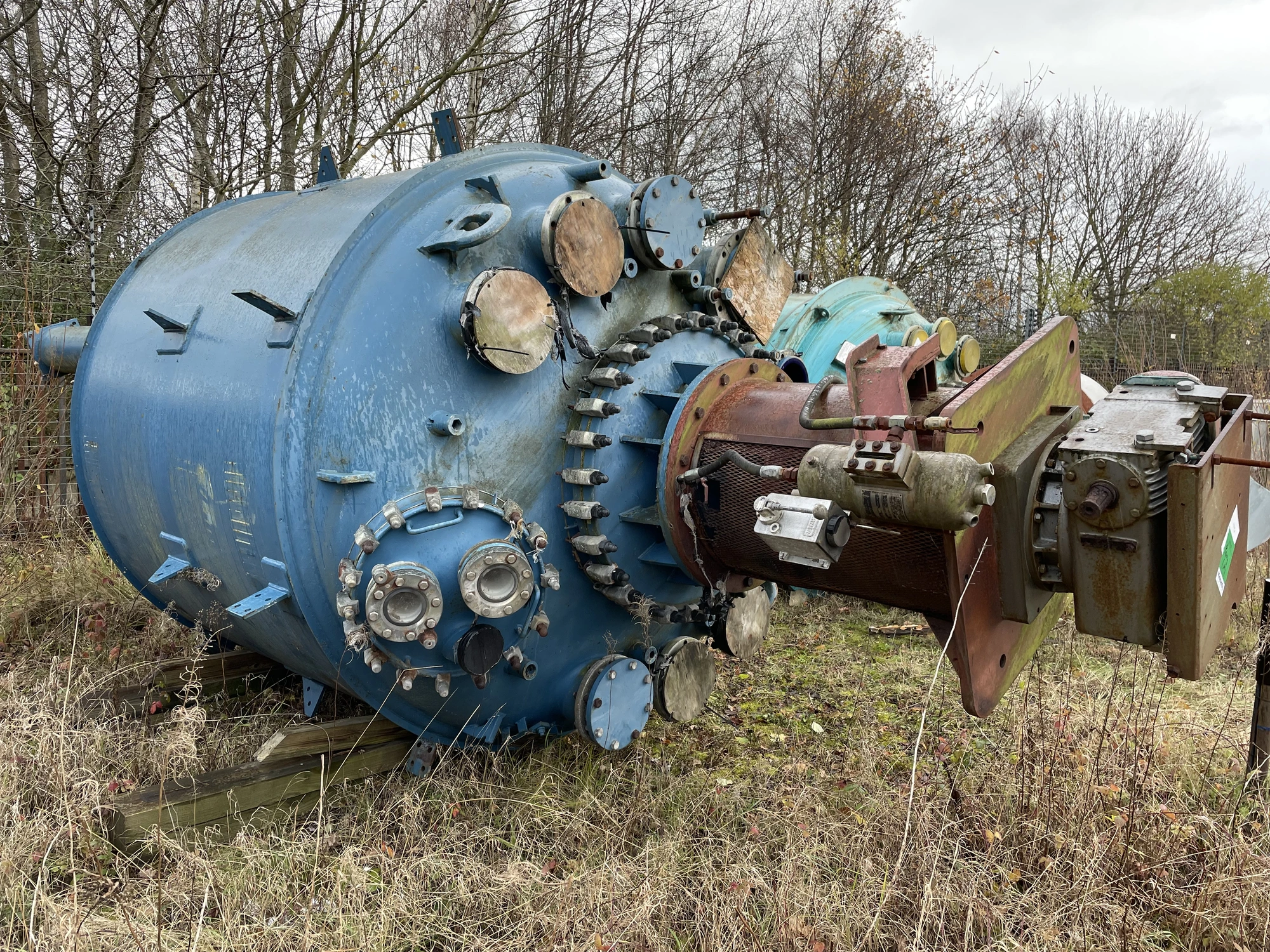

Used DeDietrich model CE10000 vertical glass lined reactor. Approximately 10,000 litre working capacity & 11,710 litre total capacity. Internal rated 6 bar/full vacuum design pressure at -25 to 200 deg.c. External mild steel jacket rated 6 bar/full vacuum design pressure at -25 to 200 deg.c. Unit has welded dished top and bottom heads. Top entry 3-blade retreat curve agitator with drive. Unit is mounted on (4) legs.
| Capacity | 2,641.7 gal | 10,000 L |
| Internal pressure | 87 PSI | 6 bar |
| Jacket Pressure | 87 | 87 |
| Material of Construction | Glass lined, External mild steel jacket | Glass lined, External mild steel jacket |
