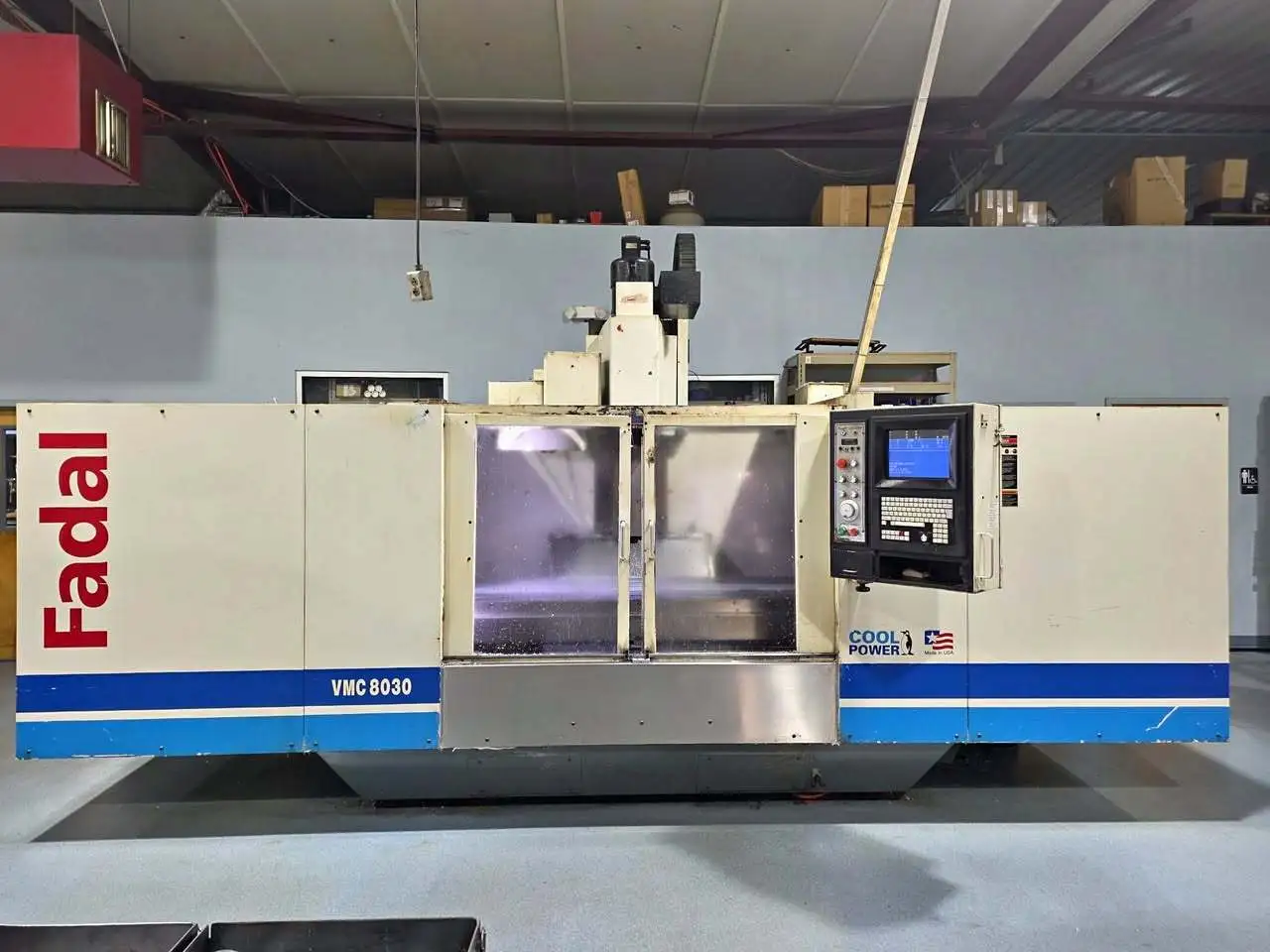

Vertical Machining Center. Features X/Y/Z heidenhain glass scales, CAT-40 taper, 30 hp, 10,000 RPM, 21-tool changer, equipped with A/B axis amplifiers, 4th/5th axis ready, rigid tapping, and spindle coolant. Used condition.
| X | 80" | 2,032 mm |
| Y | 30" | 762 mm |
| Z | 30" | 762 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 21 | 21 |
| Taper | CAT-40 | CAT-40 |
| # Axis | 4 | 4 |
| Control | CNC (Fadal) | CNC (Fadal) |
- A, B Axis Cards and amplifiers included.
- X,Y,Z axis are AC motor drive, A,B Axis are DC.
- X, Y, Z Axis Heidenhain Glass Scales
- Rigid tapping
- Chilled Z-axis Ball screw
- 4th/5th axis ready with hydraulic or pneumatic brakes
- Lightning Cool thru the spindle coolant
- 10,000 rpm Cat 40 spindles
- 21-position umbrella style tool changer
- Currently wired for 208-240 volt 3-phase power
