USED CELLFLEX SCF12-50J

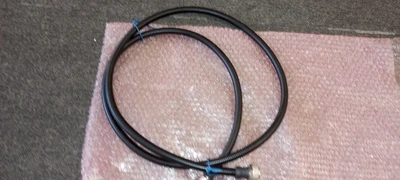

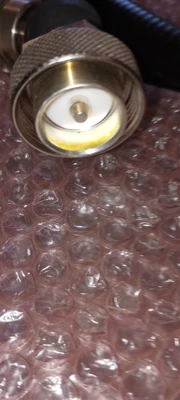

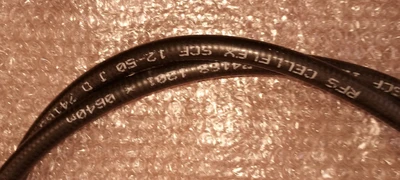

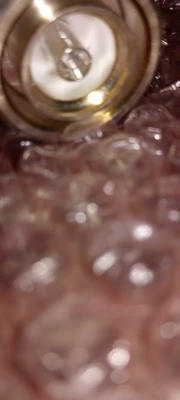

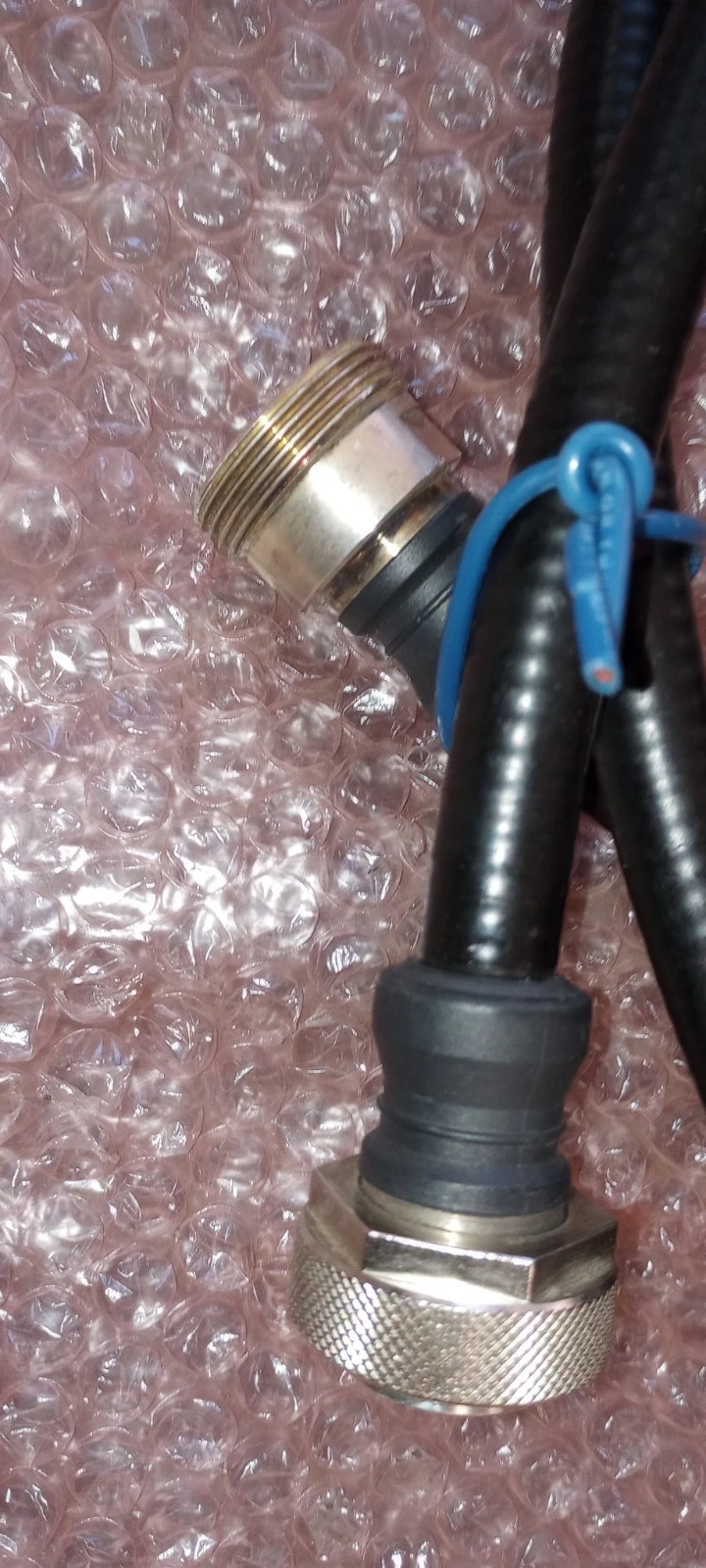

You are bidding on 1 WORKING RFS CELLFLEX SCF12-50J D 32669 1104 78" LENGTH 1/2" CABLE male to male diffierent N Male Coupler's Technical Features Cable Type Foam-Dielectric, Superflexible Size 1/2" Jacket Standard Return Loss (VSWR) Performance Standard Maximum Return Loss, dB (VSWR) Contact RFS for your VSWR performance specification for your required frequency band. Impedance, Ohm 50 +/- 1 Maximum Frequency, GHz 11.7 Velocity, percent 82 Peak Power Rating, kW 20.5 Inner Conductor dc Resistance, ohm/1000 m (ohm/1000 ft) 2.9 (0.88) Outer Conductor dc Resistance, ohm/1000 m (Ohm/1000 ft) 3.4 (1.04) RF Peak Voltage, Volts 1430 Jacket Spark, Volt RMS 5000 Capacitance, pF/m (pF/ft) 82.0 (25.0) Inductance, µH/m (µH/ft) 0.207 (0.063) Outer Conductor Material Corrugated Copper Inner Conductor Material Copper-Clad Aluminum Wire Diameter over Jacket Nominal, mm (in) 13.7 (0.54) Diameter Outer Conductor, mm (in) 12.3 (0.48) Diameter Inner Conductor, mm (in) 3.6 (0.14) Diameter Dielectric, mm (in) 8.3 (0.33) Minimum Bending Radius, Repeated Bends, mm (in) 32 (1.25) Bending Moment, N•m (lb-ft) 1.8 (1.3) Cable Weight, kg/m (lb/ft) 0.21 (0.14) Tensile Strength, N (lb) 650 (146) Flat Plate Crush Strength, N/mm (lb/in) 20.4 (110) Recommended / Maximum Clamp Spacing, m (ft) 0.30 / 0.30 (1.00 / 1.00) Installation Temperature, °C(°F) -40 to +60 (-40 to +140) Storage Temperature, °C (°F) -70 to +85 (-94 to +185) Operation Temperature, °C(°F) -50 to +85 (-58 to +185) WITH 7/16" MALE TO MALE THE PRODUCT IS USED AND TAKEN FROM A WORKING ENVIROMENT. 125h
